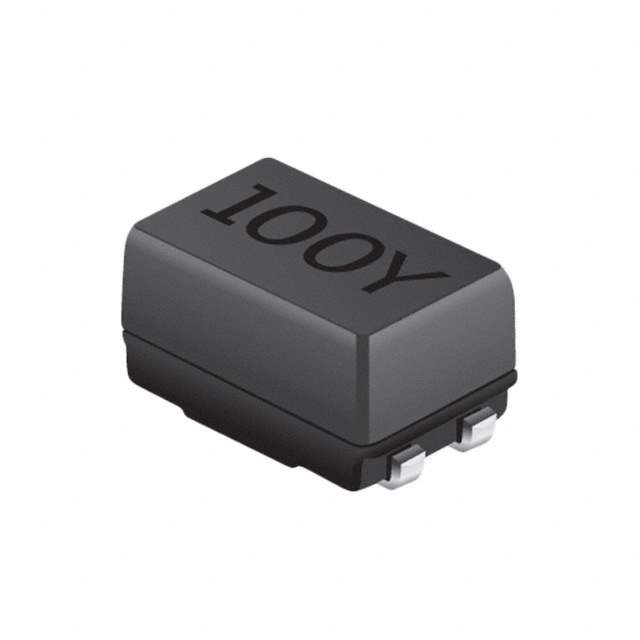

SRF0905A-250Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905A-250Y

Part No SRF0905A-250Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 25UH 1A 2LN SMD AEC-Q200
Datasheet
SRF0905A-250Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 33 Weeks
Features 2 Line Common Mode Choke Surface Mount 1A DCR 160mOhm
Manufacturer Bourns Inc.
Series SRF0905A
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
Family Name SRF0905A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRF0905A-250YDKR, SRF0905A-250YCT, SRF0905A-250YTR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897364-SRF0905A-250Y
Ultra Librarian 3D Model Ultra Librarian SRF0905A-250Y CAD Model

Description

The Bourns Inc. SRF0905A series is a 2 line common mode choke surface mount filter with a DCR of 160mOhm and a current rating of 1A.

  • DCR: 160mOhm
  • Current Rating: 1A
  • Package: horizontal, 4 PC pad
  • Mounting: surface mount
  • Temperature Range: -40°C to 105°C
  • Dimension: nonstandard
  • Supply and Demand Status: balanced
  • Quantity per Package: 1000
  • Part Number Series: SRF0905A
