Same model may have multiple batches, images only for reference.

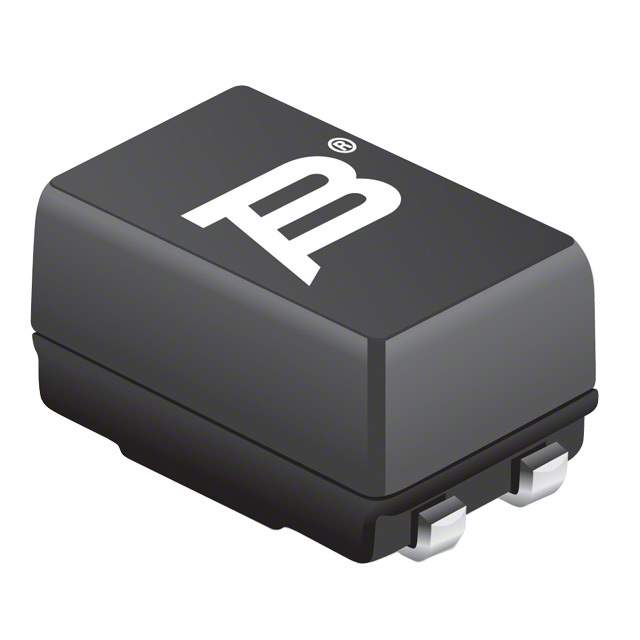

SRF0905-102Y

Name: SRF0905-102Y
Brand: Bourns Inc.
SKU: 518660
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRF0905-102Y
Manufacturer	Bourns Inc.
Catalog	Common Mode Chokes
Description	CMC 1MH 800MA 2LN 1.5 KOHM SMD
Datasheet	SRF0905-102Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	1.5 kOhm @ 1MHz
Inductance @ Frequency	1mH @ 100kHz
Current Rating (Max)	800mA
DC Resistance (DCR) (Max)	310 mOhm
Voltage Rating - DC	80V
Temperature Range - Operating	-40°C to 105°C
Mounting	SMD (SMT)
Height (Max)	0.209" (5.30mm)
Dimension	Horizontal, 4 PC Pad
Win Source Part Number	1101862-SRF0905-102Y
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SRF0905-102Y CAD Model

Description

The Bourns Inc. SRF0905-102Y is an active signal line filter electronic component.

Popularity: Medium
Supply and Demand Status: Balanced
Packaging: Reel - TR
Voltage Rating - DC: 80V
Current Rating (Max): 800mA
Mounting: SMD (SMT)
Height (Max): 0.209" (5.30mm)
Number of Lines: 2
Impedance @ Frequency: 1.5 kOhm @ 1MHz
Inductance @ Frequency: 1mH @ 100kHz
DC Resistance (DCR) (Max): 310 mOhm
Category: Filters
Component: Active
Temperature Range - Operating: -40°C to 105°C
