Same model may have multiple batches, images only for reference.

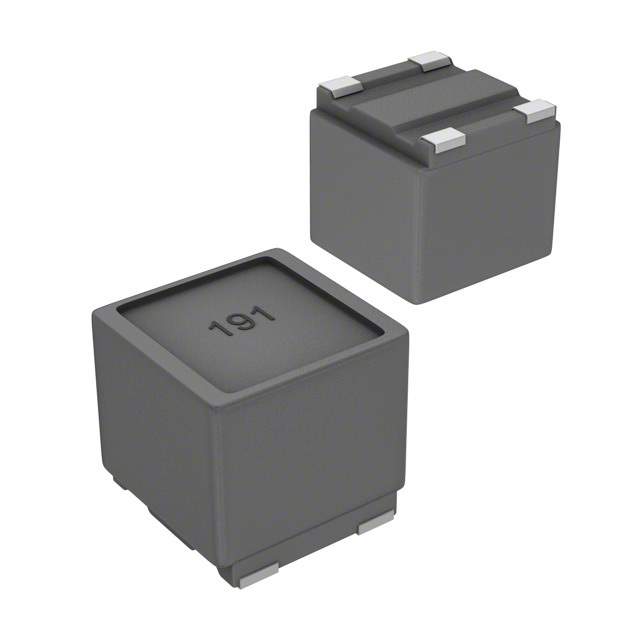

SRF0504-402Y Real Image
Same model may have multiple batches, images only for reference.

SRF0504-402Y

Part No SRF0504-402Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 2.8UH 200MA 2LN 4KOHM SMD
Datasheet
SRF0504-402Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 37 Weeks
Features 2 Line Common Mode Choke Surface Mount 4 200mA DCR 300mOhm
Manufacturer Bourns Inc.
Series SRF0504
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
Family Name SRF0504
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number -SRF0504-402YCT, SRF0504402Y, SRF0504-402YTR, -SRF0504-402Y-ND, SRF0504-402Y-ND, -SRF0504-402YTR, SRF0504-402YCT, -SRF0504-402Y
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897351-SRF0504-402Y
Ultra Librarian 3D Model Ultra Librarian SRF0504-402Y CAD Model

Description

The SRF0504-402Y is a 2 line common mode choke surface mount from Bourns Inc. It has a DCR of 4 200mA and a resistance of 300mOhm.

  • Type: Common Mode Choke
  • Lines: 2
  • Mounting: Surface Mount
  • Manufacturer: Bourns Inc.
  • DCR: 4 200mA
  • Resistance: 300mOhm
  • Package: Horizontal, 4 PC Pad
  • Package Type: Reel-TR
  • Quantity per Package: 1000
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
