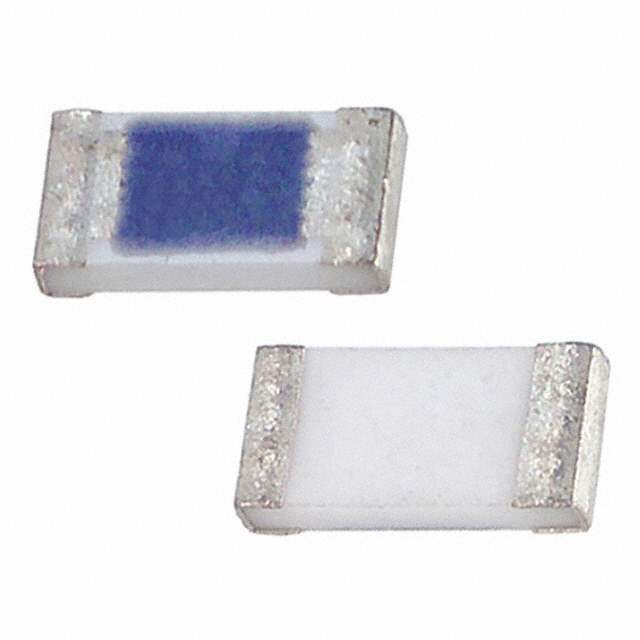

0685P4000-01 Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

0685P4000-01

Part No 0685P4000-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MNT 4A 50VAC 63VDC 1206
Datasheet
0685P4000-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Bel Fuse Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - AC 50 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Ultra Librarian 3D Model Ultra Librarian 0685P4000-01 CAD Model

Description

  • Fast Acting, with improved surge withstand performance
  • Small size, 1206 SMD
  • Current rating from 2A to 50A, fuse marked with ampere code
  • Wide operating temperature range from -55℃ to 125℃
  • Tape and Reel for automatic SMD placement
  • Compatible with 260℃ IR Pb-free and wave soldering process
  • Full compliance with EU Directive 2011/65/EU and amending directive 2015/863 (MSL = 1)
  • Halogen Free and Lead Free
  • AEC-Q Compliant
  • Meets Bel automotive qualification
  • Largely based on internal AEC-Q test plan
