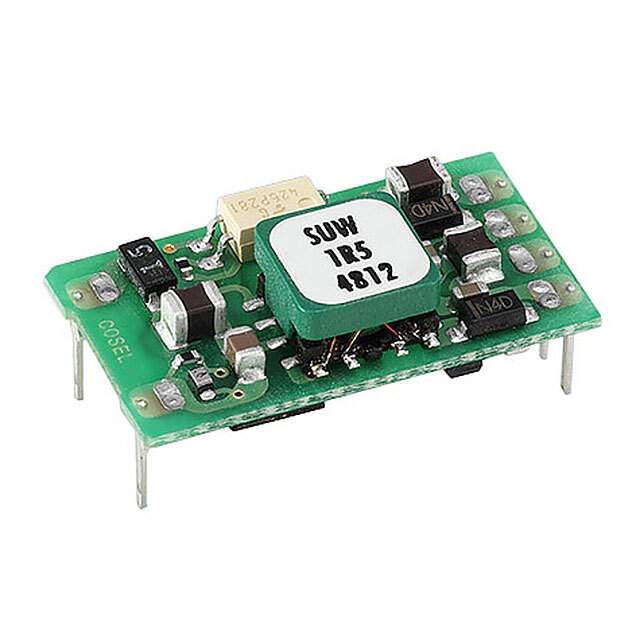

Same model may have multiple batches, images only for reference.

SUW1R50512C

Name: SUW1R50512C
Brand: Cosel USA, Inc.
SKU: 1030134
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SUW1R50512C
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	SUW (1.5W)
Package	Box
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	85mA, 85mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	72%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm)
Base Product Number	SUW1R50512
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1752
Standard Package	1
Win Source Part Number	1030134-SUW1R50512C
Ultra Librarian 3D Model	Ultra Librarian SUW1R50512C CAD Model

Alternative Products

Description

The SUW1R50512C is a DC-DC converter module manufactured by Cosel USA, Inc.

Type: Isolated Module
Outputs: Two
Maximum Output Current: 85mA
Input Voltage Range: 4.5V to 9V
Output Voltage: 12V and -12V
Efficiency: 72 percent
Application: ITE (Commercial)
Mounting Type: Through Hole
Package: 6-DIP Module
