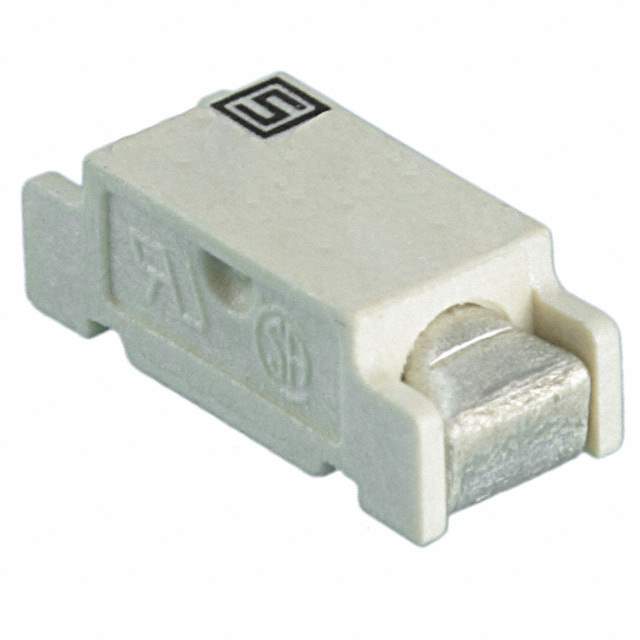

3403.0020.24 Real Image
Same model may have multiple batches, images only for reference.

3403.0020.24

Part No 3403.0020.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 2.5A 250VAC/VDC SMD
Datasheet
3403.0020.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2.5A
Voltage Rating - AC 250V
Voltage Rating - DC 250V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A
Nominal Melting - I2t 2.6
Approvals cURus, VDE
Temperature Range - Operating -55°C to 125°C
Dimension 0.433" L x 0.181" W x 0.154" H (11.00mm x 4.60mm x 3.90mm)
Win Source Part Number 1021842-3403.0020.24
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3403.0020.24 CAD Model

Description

The 1021842-3403.0020.24 is a 2.5A board mount (cartridge style excluded) fuse from Schurter Inc.

  • Current: 2.5A
  • Type: Board mount (cartridge style excluded) fuse
  • Voltage Rating: 250V AC and 250V DC
  • Response Time: Fast
  • Breaking Capacity: 100A @ rated voltage
  • Approvals: cURus and VDE
  • Supply and Demand Status: Balanced
  • Application: Ideal for use in various electronic circuits
  • Category: Circuit protection
