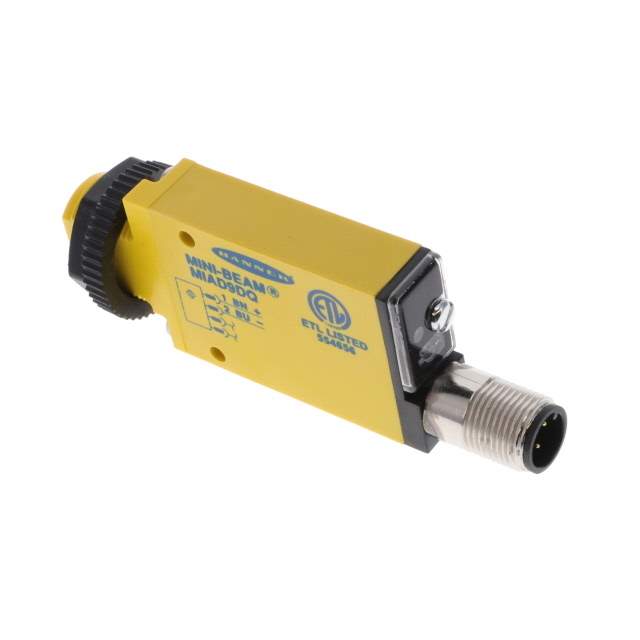

MIAD9DQ Real Image
Same model may have multiple batches, images only for reference.

MIAD9DQ

Part No MIAD9DQ
Manufacturer Banner Engineering Corporation
Catalog Optical Sensors - Photoelectric, Industrial
Description SEN PHOTO 380MM NAMUR / Diffuse Optical Sensor 14.961" (380mm) Light-On/Dark-On
Datasheet
MIAD9DQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photoelectric, Industrial
Mfr Banner Engineering Corporation
Series MIAD9
Package Box
Sensing Method Diffuse
Sensing Distance 14.961" (380mm)
Voltage - Supply 5V ~ 15V
Response Time 5ms
Output Configuration Light-On/Dark-On
Light Source Infrared (880nm)
Connection Method Connector
Ingress Protection NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
Adjustment Type Adjustable, Potentiometer
Temperature Range - Operating -40°C ~ 70°C
Base Product Number MIAD9
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names 2170-MIAD9DQ
Standard Package 1
Win Source Part Number 1013173-MIAD9DQ
Ultra Librarian 3D Model Ultra Librarian MIAD9DQ CAD Model

Description

The Banner Engineering Corporation MIAD9DQ is a photoelectric sensor that is suitable for use in industrial applications.

  • Win Source Part Number: 1013173-MIAD9DQ
  • Series: MIAD9
  • Ingress Protection: NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
  • Sensing Distance: 14.961" (380mm)
