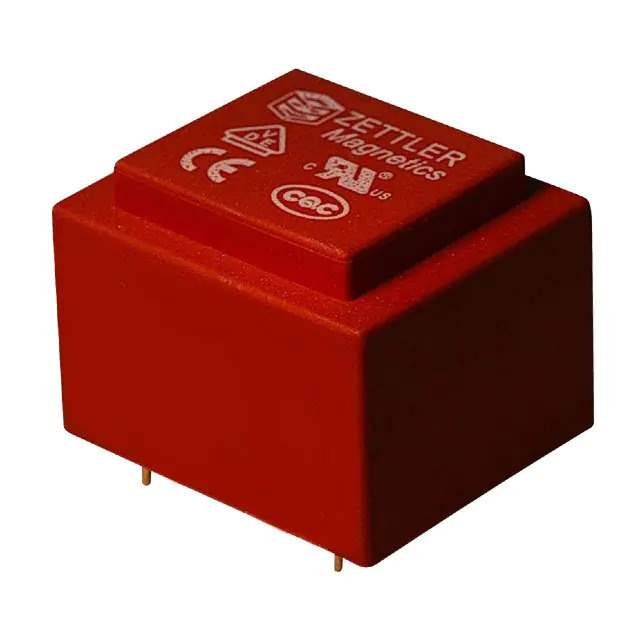

BV302S06006-ZU Real Image
Same model may have multiple batches, images only for reference.

BV302S06006-ZU

Part No BV302S06006-ZU
Manufacturer ZETTLER Electronics
Catalog Power Transformers
Description PWR XFMR LAMINATED 0.6VA TH
Datasheet
BV302S06006-ZU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr ZETTLER Electronics
Series EI 30-5
Package Box
Product Status Active
Type Laminated Core
Voltage - Primary 230V
Voltage - Secondary (Full Load) 6V
Current - Output (Max) 100mA
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap No
Power - Max 0.6VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 32.80mm L x 27.80mm W
Height - Seated (Max) 15.40mm
Voltage - Isolation 4200Vrms
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 913805-BV302S06006-ZU
Ultra Librarian 3D Model Ultra Librarian BV302S06006-ZU CAD Model

Description

The BV302S06006-ZU is a power transformer manufactured by ZETTLER Electronics.

  • Category: Transformers - Power Transformers
  • Series: EI 30-5
  • Core: Laminated
  • Termination Style: PC pin
  • Packaging: Box
  • Standard Package: 1 piece
  • Size Dimensions: 32.80mm L x 27.80mm W
  • Seated Height: 15.40mm
  • Power Rating: 0.6VA (Maximum)
  • Isolation Voltage: 4200Vrms
  • Primary Voltage: 230V
  • Maximum Output Current: 100mA
  • Secondary Voltage: 6V @ Full Load
  • Primary Winding: Single
  • Secondary Winding: Single
  • Center Tap: None
  • Mounting: Through-hole
  • REACH: Not affected
  • Status: Active
