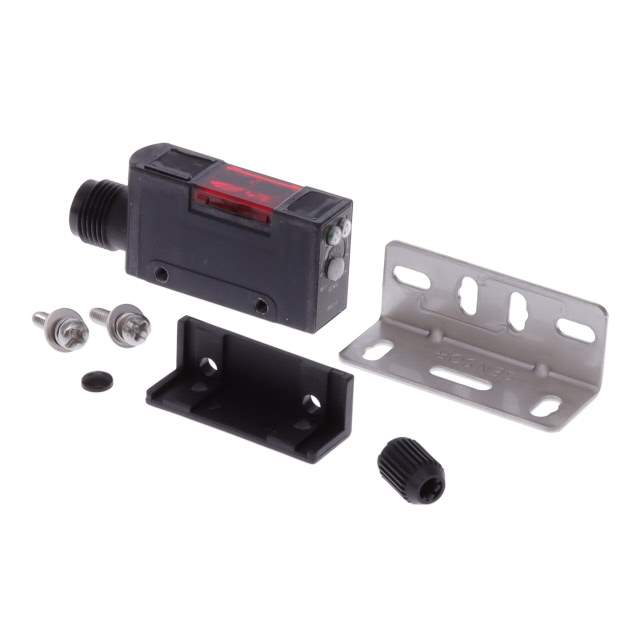

E3S-AD86 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photoelectric, Industrial
Mfr Omron Automation and Safety
Series E3S-A
Package Bulk
Sensing Method Reflective, Diffuse
Sensing Distance 7.874" (200mm)
Voltage - Supply 10V ~ 30V
Response Time 500µs
Output Configuration PNP - Dark-ON/Light-ON - Selectable
Light Source Red (700nm)
Connection Method Connector
Ingress Protection NEMA 4X; IEC IP67
Adjustment Type Two-Turn Endless Adjuster with an Indicator
Temperature Range - Operating -25°C ~ 55°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names E3SAD86,Z12096,E3S-AD86-ND
Standard Package 1
Win Source Part Number 1043227-E3S-AD86
Ultra Librarian 3D Model Ultra Librarian E3S-AD86 CAD Model

Description

The Omron E3S-AD86 is an industrial photoelectric sensor that is used in various applications.

  • Sensing Distance: 200mm
  • Response Time: 500µs
  • Package: Bulk
  • Ingress Protection: NEMA 4X and IEC IP67
  • Operating Temperature: -25°C to 55°C
  • Voltage Supply: 10V ~ 30V
  • Adjustment: Two-turn endless adjuster with an indicator
  • Output Configuration: PNP, selectable between dark-ON and light-ON
  • Alternative Part: E3SAD86
  • Sensing Methods: Reflective and Diffuse
