Same model may have multiple batches, images only for reference.

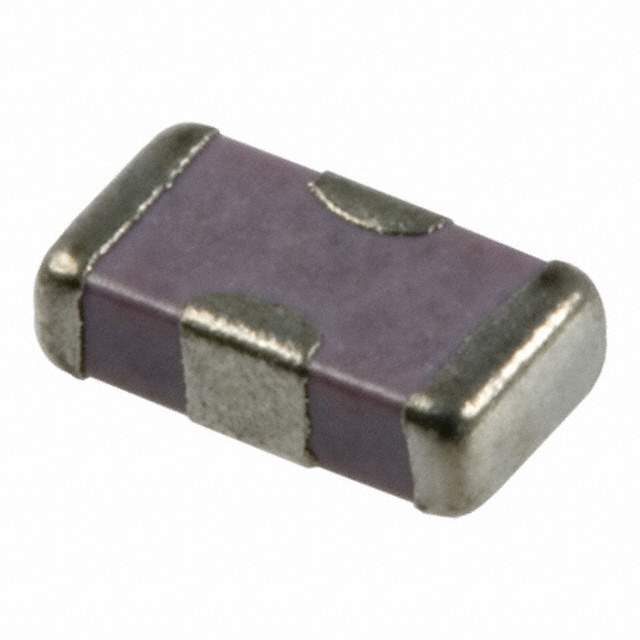

W3H11A1018AT1F Real Image
Same model may have multiple batches, images only for reference.

W3H11A1018AT1F

Part No W3H11A1018AT1F
Manufacturer AVX Corporation
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 100PF 100V 0612
Datasheet
W3H11A1018AT1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 100pF
Tolerance -20%, +50%
Voltage Rating 100V
Current 4A
DC Resistance (DCR) (Max) 150 mOhm
Temperature Range - Operating -55°C to 125°C
Temperature Coefficient C0G, NP0
Mounting SMD (SMT)
Dimension 0.063" L x 0.126" W (1.60mm x 3.20mm)
Height (Max) 0.048" (1.22mm)
Win Source Part Number 1042028-W3H11A1018AT1F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian W3H11A1018AT1F CAD Model

Description

The AVX Corporation 461517 is a surface mount capacitor that is designed to meet the demands of high-performance electronic applications.

  • Manufacturer: AVX Corporation
  • Mounting Type: Surface Mount
  • Voltage Rating: 100V
  • Capacitance: 100pF
  • Applications: Filters
  • Tolerance: -20%, +50%
  • Temperature Coefficient: C0G, NP0
  • Maximum Height: 0.048 inches
  • DC Resistance: 150 mOhm
  • Current Rating: 4A
  • Operating Temperature: -55°C to 125°C
  • Packaging: Reel
  • Dimension: 0.063 inches L x 0.126 inches W
  • Status: Obsolete (EOL)
  • Popularity: Medium
