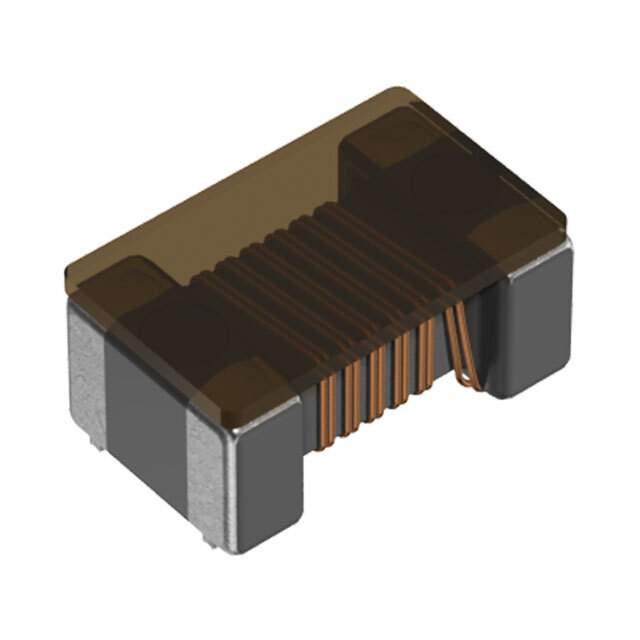

ACM2012E-102-2P-T00 Real Image
Same model may have multiple batches, images only for reference.

ACM2012E-102-2P-T00

Part No ACM2012E-102-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 150MA 2LN 1 KOHM SMD / Common Mode Filters For high-speed differential signal line, general signal line
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 1 kOhms at 100MHz
Current Rating (Maximum) 150mA
DC Resistance (DCR) (Maximum) 2.5Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Maximum) 0.043" (1.10mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806668-ACM2012E-102-2P-T00
Ultra Librarian 3D Model Ultra Librarian ACM2012E-102-2P-T00 CAD Model

Description

The TDK Corporation ACM2012E-102-2P-T00 filter is a signal line filter that has a voltage rating of 50V and a current rating of 150mA. It has a DC resistance (DCR) of 2.5Ohm and an impedance of 1 kOhms @ 100MHz.

  • Voltage Rating: 50V
  • Current Rating: 150mA
  • DC Resistance (DCR): 2.5Ohm
  • Impedance: 1 kOhms @ 100MHz
  • Package: Horizontal, 4 PC Pads
  • Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Mounting: Surface Mount
  • Packaging: Reel
  • Quantity per Reel: 2,000
  • Supply/Demand Status: Balanced
