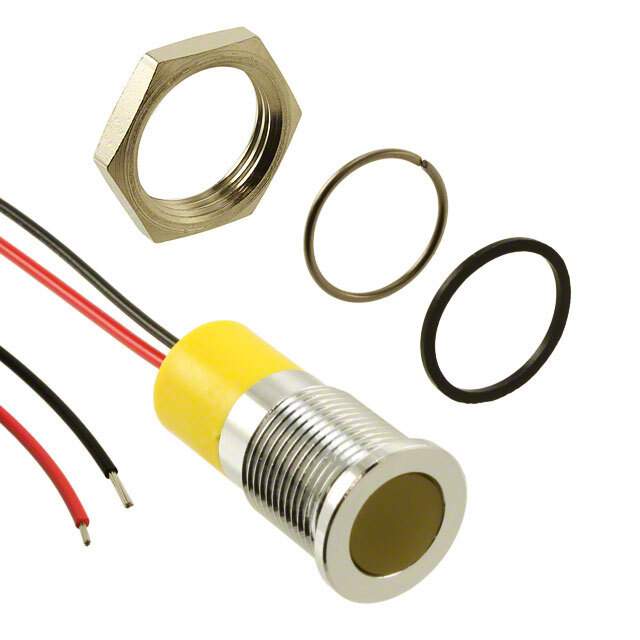

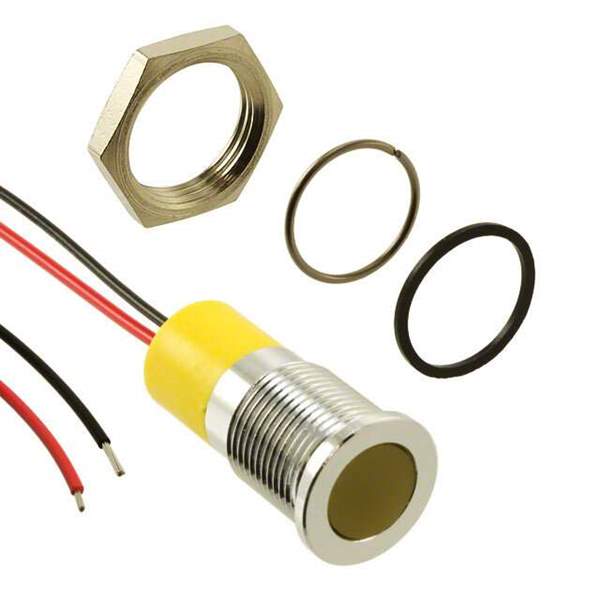

Q14F3CXXY24E Real Image
Same model may have multiple batches, images only for reference.

Q14F3CXXY24E

Part No Q14F3CXXY24E
Manufacturer Apem Inc.
Catalog Optics - LEDs - Light Pipes
Description LED PM INDICATOR FLUSH YELLOW / LED Panel Indicator Yellow Diffused 100° 24V 20mA Wire Leads - 7.87" (200.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr APEM Inc.
Series Q14
Package Bag
Type LED
Lamp Color Yellow
Lens Color Yellow
Lens Transparency Diffused
Ratings DC
Voltage 24V
Current 20mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.55" (13.97mm)
Lens Size 10.00mm Dia
Lens Style Round with Flat Top
Millicandela Rating 4mcd
Viewing Angle 100°
Termination Style Wire Leads - 7.87" (200.00mm)
Ingress Protection IP67
Base Product Number Q14F3CXXY
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 679-2887
Standard Package 25
Win Source Part Number 1209317-Q14F3CXXY24E
Ultra Librarian 3D Model Ultra Librarian Q14F3CXXY24E CAD Model

Description

The Q14F3CXXY24E LED Panel Indicator is a yellow diffused lens panel indicator that provides a viewing angle of 100 degrees. It is from APEM Inc.

  • Application: Optoelectronics and pilot lights
  • Viewing Angle: 100 degrees
  • Leads: Wire Leads
  • Lead Length: 7.87 inches (200mm)
  • Panel Cutout Dimension: 0.55 inches (13.97mm)
  • Lamp Color: Yellow
  • Millicandela Rating: 4mcd
  • Voltage Rating: 24V
  • Current Rating: 20mA
  • Ingress Protection Rating: IP67
  • Package: Bag
  • Lens Style: Round with Flat Top
  • Lens Size: 10.00mm in diameter
  • ECCN: EAR99 compliant
  • REACH: Unaffected
