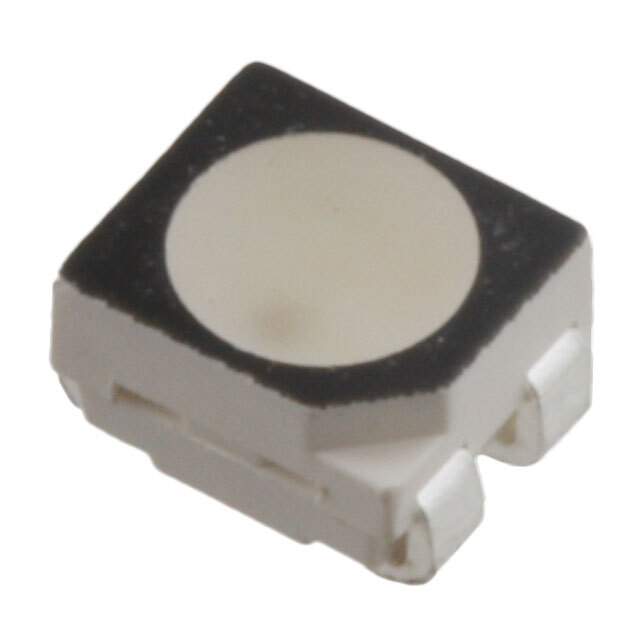

OVSARGB4R8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr TT Electronics/Optek Technology
Package Tape & Reel
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Transparency Diffused
Millicandela Rating 635mcd Red, 1000mcd Green, 335mcd Blue
Lens Style Round with Flat Top
Voltage - Forward (Vf) (Typ) 2V Red, 3.2V Green, 3.2V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 622nm Red, 530nm Green, 468nm Blue
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number OVSARGB4
MSL Level 5A (24 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 365-1561-2,365-1561-1,365-1561-6
Standard Package 2,000
Win Source Part Number 1154475-OVSARGB4R8
Ultra Librarian 3D Model Ultra Librarian OVSARGB4R8 CAD Model

Description

The OVSARGB4R8 is a 4-PLCC package RGB LED indication discrete component from TT Electronics/Optek Technology.

  • Configuration: Common anode
  • Lens Transparency: Diffused
  • Lens Style: Round with flat top
  • Millicandela Rating: 635mcd for red, 1000mcd for green, and 335mcd for blue
  • Forward Voltage (Vf): 2V for red, 3.2V for green, and 3.2V for blue
  • Viewing Angle: 120 degrees
  • Wavelength-Dominant: 622nm for red, 530nm for green, and 468nm for blue
  • Height: 2.10mm
  • Dimension: 3.20mm L x 2.80mm W
  • Package: Tape and reel
  • Standard Package: 2,000
  • Application: Optoelectronics
