Same model may have multiple batches, images only for reference.

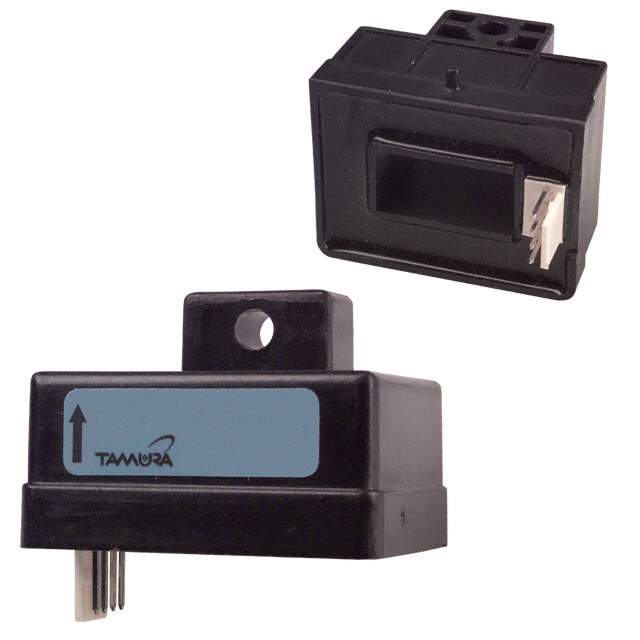

L03S100D15 Real Image
Same model may have multiple batches, images only for reference.

L03S100D15

Part No L03S100D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Datasheet
L03S100D15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Tamura
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC to 50kHz
Linearity ±1%
Accuracy ±1%
Supply Voltage - Operating ±15V
Response Time 5μs
Current - Supply (Max) 12mA
Temperature Range - Operating -20°C to 80°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module
Win Source Part Number 205895-L03S100D15
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L03S100D15 CAD Model

Description

The Tamura 205895-L03S100D15 is an active sensor/transducer with a bidirectional polarization for measuring AC/DC.

  • Response Time: 5μs
  • Sensitivity and Accuracy: ±1%
  • Supply Voltage: ±15V
  • Operating Temperature Range: -20°C to 80°C
  • Mounting: through hole
  • Packaging: bulk
