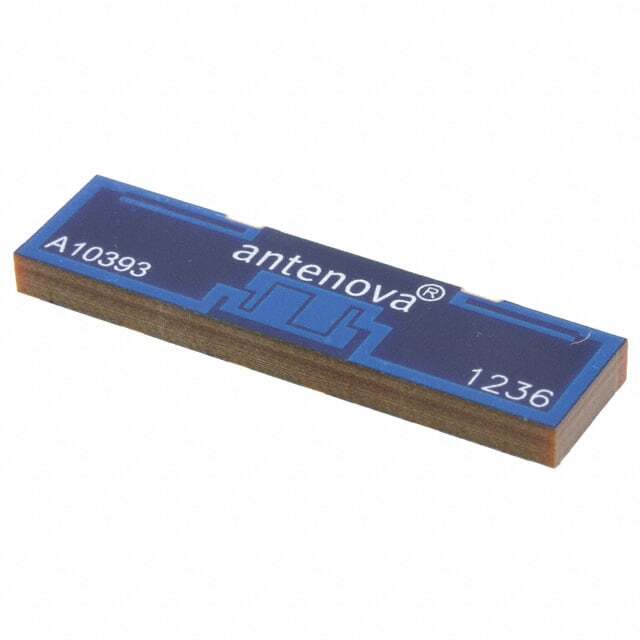

A10393
Same model may have multiple batches, images only for reference.

A10393

Part No A10393
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 850/900MHZ PCB TRACE SLD / 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM, UMTS, WCDMA PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 1.8dBi, 3.8dBi Solder Surface Mount
Datasheet
A10393 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Rubra
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type PCB Trace
Number of Bands 5
VSWR 2.6
Return Loss -6dB
Gain 1.8dBi, 3.8dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.126" (3.20mm)
Applications GSM, UMTS, WCDMA
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Win Source Part Number 858797-A10393
Ultra Librarian 3D Model Ultra Librarian A10393 CAD Model

Description

The Rubra series RF antenna is designed for GSM, UMTS, and WCDMA applications from Antenova.

  • Series: Rubra
  • Frequency Range: 824MHz to 960MHz and 1.71GHz to 2.17GHz
  • Return Loss: -6dB
  • Height: 0.126" (3.20mm)
  • Termination: Solder
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Lifecycle Status: Obsolete
