Same model may have multiple batches, images only for reference.

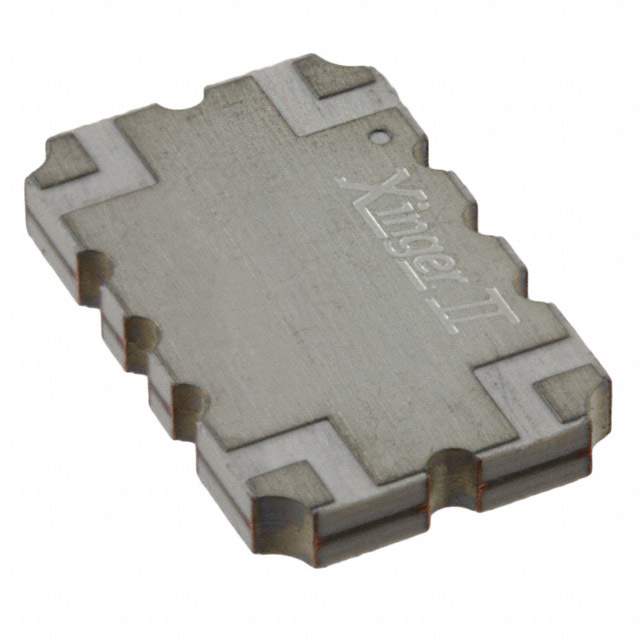

XC0900A-03S Real Image
Same model may have multiple batches, images only for reference.

XC0900A-03S

Part No XC0900A-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 811-1000MHZ 3DB
Datasheet
XC0900A-03S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 811MHz to 1GHz
Coupling Factor 3dB
Applications AMPS
Insertion Loss 0.15dB
Maximum Power Dissipation 175W
Isolation 23dB
Return Loss 24.9dB
Case / Package SMD
Win Source Part Number 036577-XC0900A-03S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian XC0900A-03S CAD Model

Description

Anaren XC0900A-03S is a standard coupler designed for AMPS applications.

  • Frequency Range: 811MHz to 1GHz
  • Coupling Factor: 3dB
  • Insertion Loss: 0.15dB
  • Isolation: 23dB
  • Return Loss: 24.9dB
  • Supply and Demand Status: Balance
  • Maximum Power Dissipation: 175W
  • Package: SMD case
