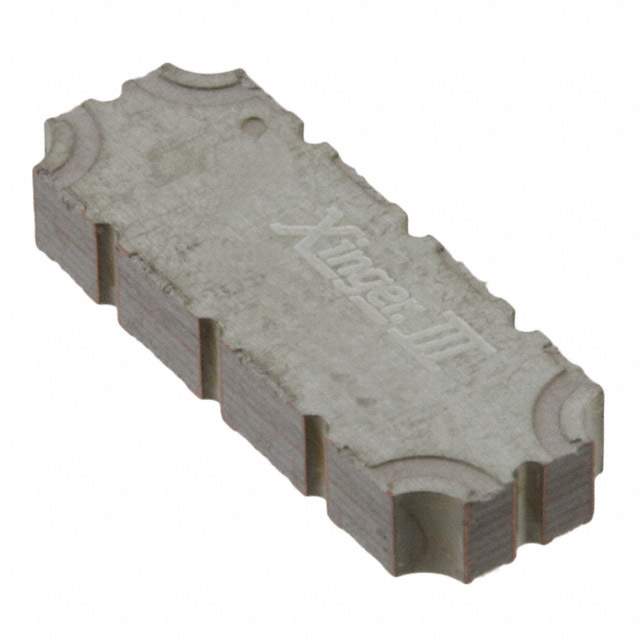

X3C09E2-20S Real Image
Same model may have multiple batches, images only for reference.

X3C09E2-20S

Part No X3C09E2-20S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 800-1000MHZ 20DB
Datasheet
X3C09E2-20S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 800MHz to 1GHz
Coupling Factor 20dB
Applications AMPS, CDMA, WCDMA
Insertion Loss 0.075dB
Maximum Power Dissipation 225W
Return Loss 20dB
Case / Package 4-SMD
Win Source Part Number 043754-X3C09E2-20S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian X3C09E2-20S CAD Model

Description

The Anaren X3C09E2-20S is an RF coupler designed for AMPS, CDMA, and WCDMA applications.

  • Frequency Range: 800MHz to 1GHz
  • Coupling Factor: 20dB
  • Insertion Loss: 0.075dB
  • Return Loss: 20dB
  • Isolation: No isolation
  • Package: Reel
  • Maximum Power Dissipation: 225W
  • Supply and Demand Status: Balanced
  • Popularity: Medium
