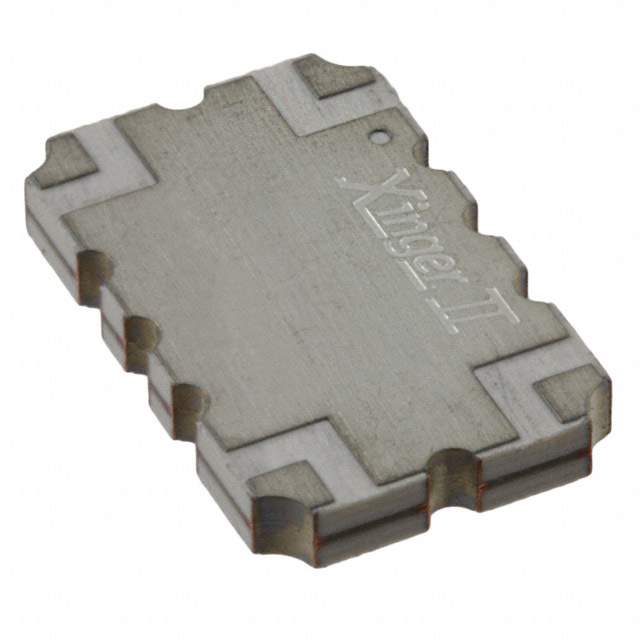

XC0900A-03SR Real Image
Same model may have multiple batches, images only for reference.

XC0900A-03SR

Part No XC0900A-03SR
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 811-1000MHZ 3DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 811MHz to 1GHz
Coupling Factor 3dB
Applications AMPS
Insertion Loss 0.15dB
Maximum Power Dissipation 175W
Isolation 23dB
Return Loss 24.9dB
Case / Package SMD
Win Source Part Number 043791-XC0900A-03SR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XC0900A-03SR CAD Model

Description

The Anaren 043791-XC0900A-03SR is an RF coupler that is suitable for AMPS applications.

  • Frequency Range: 811MHz to 1GHz
  • Coupling Factor: 3dB
  • Insertion Loss: 0.15dB
  • Isolation: 23dB
  • Return Loss: 24.9dB
  • Package: SMD
  • Maximum Power Dissipation: 175W
  • Supply and Demand Status: Balanced
