Analog Devices Inc. LTC6409HUDB#TRPBF

The LTC6409HUDB#TRPBF is a high-speed differential amplifier designed by Analog Devices Inc., a leader in the field of high-performance analog technology. This component is engineered to deliver exceptional performance in applications requiring precise signal conditioning, such as data acquisition systems, high-speed ADC drivers, and communications equipment.

Key Features

• High Bandwidth: The LTC6409HUDB#TRPBF boasts an impressive bandwidth of 10GHz, enabling it to handle high-speed signals with ease.
• Low Distortion: With its ultra-low distortion characteristics, this amplifier ensures the integrity of the signal is maintained, making it ideal for high-fidelity applications.
• Adjustable Gain: The device offers a gain range from -1 to 10, which can be set using external resistors. This flexibility allows designers to tailor the gain to specific application requirements.
• Differential Outputs: The differential output structure provides improved noise immunity and is well-suited for driving differential input ADCs.
• Power Efficiency: The LTC6409HUDB#TRPBF operates with a supply voltage from 2.7V to 3.3V, ensuring low power consumption while maintaining high performance.

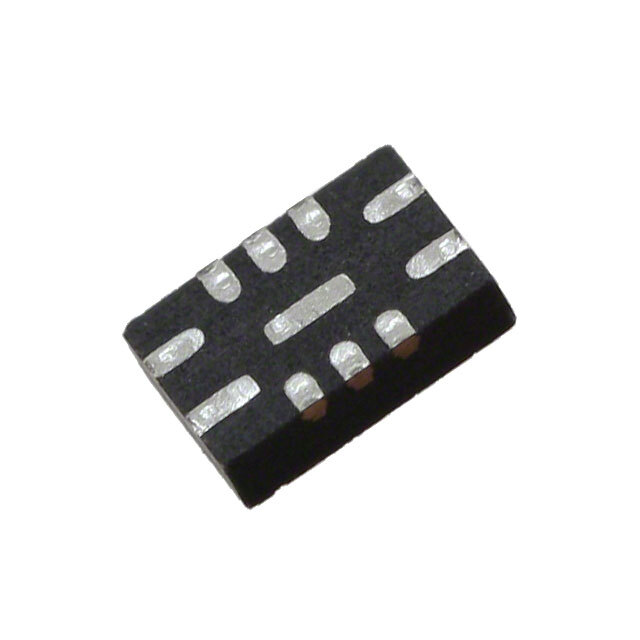

• Robust Packaging: Housed in a compact QFN-16 package, the product is designed for space-constrained applications without compromising on performance.

Applications

Thanks to its high-speed and precision characteristics, the LTC6409HUDB#TRPBF is well-suited for a variety of demanding applications, including:

• Driving high-speed analog-to-digital converters (ADCs)
• Communications infrastructure
• IF and baseband processing
• Test and measurement equipment
• Medical imaging systems

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the LTC6409HUDB#TRPBF is no exception. It is manufactured to meet the high standards expected from Analog Devices products, ensuring reliability and performance for critical applications. The product is available in tape and reel packaging, indicated by the TRPBF suffix, which facilitates efficient assembly processes for high-volume production.

Overall, the LTC6409HUDB#TRPBF from Analog Devices Inc. is a versatile and high-performing differential amplifier that meets the needs of modern, high-speed electronic systems.
