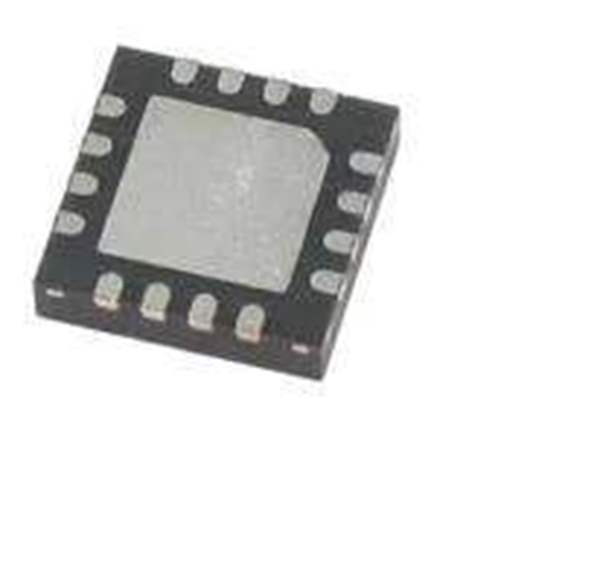

Analog Devices LTC4451AV#TRMPBF

The LTC4451AV#TRMPBF is a high-performance, high-side N-channel MOSFET driver manufactured by Analog Devices Inc., a leader in the design and production of integrated circuits. This component is designed to operate over a wide voltage range and is capable of driving large gate capacitances with very fast switching times, making it an ideal choice for a variety of power management and conversion applications.

Key Features

• Voltage Range: The driver can handle a supply voltage range from 4.5V to 15V, providing flexibility for different types of circuit designs and ensuring compatibility with a wide array of N-channel MOSFETs.
• High-Speed Operation: With its fast switching capability, the LTC4451AV#TRMPBF can switch at high frequencies, which is essential for efficient power conversion and regulation in modern electronic devices.
• Powerful Drive Capability: It can deliver up to 1.5A of peak output current, ensuring that even large MOSFET gates can be charged and discharged quickly, reducing switching losses and improving overall efficiency.
• Adaptive Shoot-Through Protection: This built-in protection feature prevents both the high-side and low-side MOSFETs from conducting simultaneously, thereby eliminating the risk of potentially damaging shoot-through currents.
• Thermal Protection: The device includes over-temperature protection that shuts down the driver if the die temperature exceeds safe operating limits, safeguarding the IC and the system it controls from thermal damage.

Applications

The LTC4451AV#TRMPBF is suitable for a wide range of applications, including:

• Synchronous rectification in DC/DC converters
• High-frequency power supplies
• Motor control circuits
• Class D audio amplifiers

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the LTC4451AV#TRMPBF is no exception. It is available in a compact, surface-mount package that is RoHS compliant and lead-free, ensuring that it meets the latest environmental standards for electronic components. The device is also designed to meet the rigorous requirements of industrial and automotive applications, ensuring reliability and performance under demanding conditions.

With its robust feature set and flexible operating parameters, the LTC4451AV#TRMPBF is an excellent choice for designers looking to optimize the performance and efficiency of their power management systems.
