Same model may have multiple batches, images only for reference.

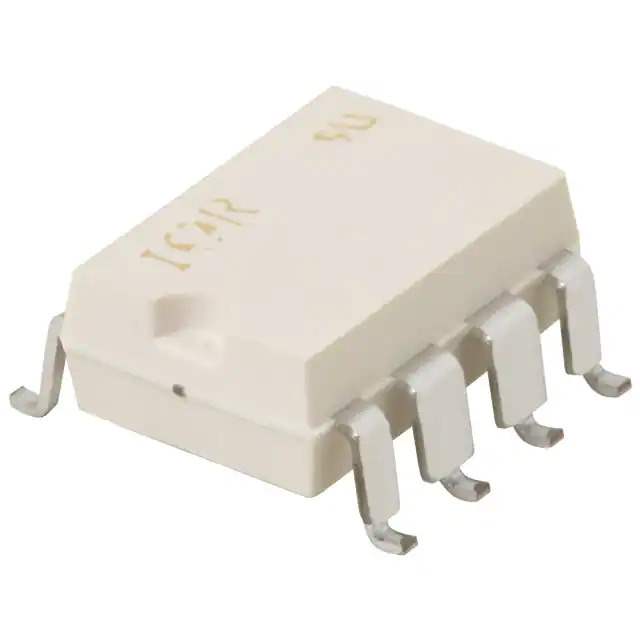

PVT422S-T Real Image
Same model may have multiple batches, images only for reference.

PVT422S-T

Part No PVT422S-T
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 120MA 0-400V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVT, HEXFET®
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 35 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 750 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658237-PVT422S-T
Ultra Librarian 3D Model Ultra Librarian PVT422S-T CAD Model

Description

The PVT422S-T is a solid-state relay from the PVT series by Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Product: PVT422S-T
  • Series: PVT
  • Circuit Configuration: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 35 Ohms
  • Load Current: 120 mA
  • Input Voltage: 1.2VDC
  • Load Voltage: 0V to 400V
  • Mounting: Surface Mount
  • Package: 8-SMD
