Analog Devices Inc. LTC4213CDDB#TRPBF Hot Swap Controller

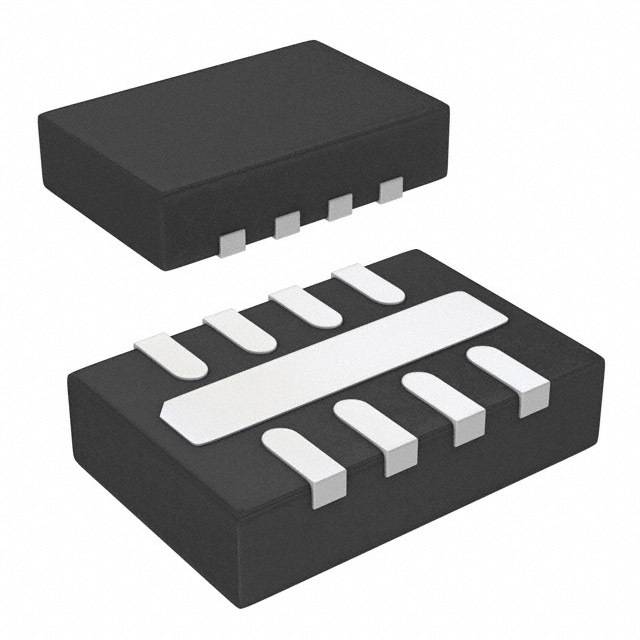

The LTC4213CDDB#TRPBF is a compact, feature-rich hot swap controller designed by Analog Devices Inc., a leader in high-performance analog technology. This device enables safe board insertion and removal from a live backplane or other power sources. It is housed in a small 8-lead DFN package and is part of the LTC4213 series, known for their reliability and performance in managing power distribution systems.

With an operating voltage range from 2.9V to 26.5V, the LTC4213CDDB#TRPBF is versatile and can accommodate a wide range of applications, including servers, network routers, and other telecom or datacom equipment. Its ability to control the power supply during insertion helps prevent glitches on the power rail, ensuring a stable and reliable operation of the system's electronic components.

The device features an adjustable overcurrent threshold and a timed circuit breaker function, which together protect both the load and the power source from excessive currents. The LTC4213CDDB#TRPBF also incorporates a fast electronic circuit breaker to protect against overcurrent conditions, providing an additional layer of security for sensitive electronics.

Moreover, the controller offers an under-voltage lockout feature, ensuring that the device will not turn on if the supply voltage is too low, thus avoiding potential damage from insufficient power conditions. It also provides a status flag output that can be used to signal a fault condition to a microcontroller or other supervisory hardware.

The LTC4213CDDB#TRPBF is designed with an auto-retry feature, which allows the device to automatically attempt to reconnect the load after a fault has occurred and been cleared. This minimizes system downtime and reduces the need for manual intervention.

Overall, the Analog Devices Inc. LTC4213CDDB#TRPBF hot swap controller is a sophisticated solution for managing power distribution in high-availability systems. Its compact size, comprehensive protection features, and robust design make it an ideal choice for engineers looking to enhance system reliability and maintain uninterrupted service in their electronic applications.
