The HMC558A from Analog Devices Inc. is a state-of-the-art GaAs MMIC Doubler that operates from 13 to 16 GHz input frequency range to produce a 26 to 32 GHz output frequency range. This high-performance active frequency doubler is designed to meet the needs of sophisticated communication systems and radar applications that require a reliable and efficient frequency multiplication solution.

Key Features

• Frequency Range: The HMC558A doubles input frequencies from 13 GHz to 16 GHz, delivering an output in the 26 GHz to 32 GHz range, making it suitable for K-band applications.
• Conversion Gain: It offers a conversion gain of 11 dB, which helps maintain signal integrity by compensating for conversion losses.
• Single DC Supply: The device operates on a single +5V DC supply, simplifying power management in complex systems.
• Output Power: The HMC558A provides +17 dBm of saturated output power, ensuring strong signal output for various applications.

Applications

The HMC558A is ideal for a range of high-frequency applications, including:

• Point-to-point and point-to-multipoint radios
• VSAT
• Military & space
• Test instrumentation
• Satellite communication systems

Product Specifications

Parameter Value Input Frequency Range (GHz) 13 - 16 Output Frequency Range (GHz) 26 - 32 Conversion Gain (dB) 11 Saturated Output Power (dBm) +17 Supply Voltage (V) +5

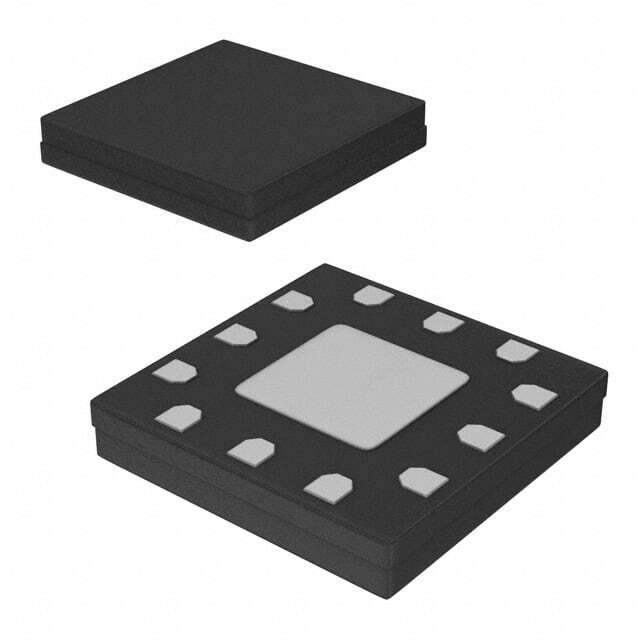

The HMC558A is available in a compact and robust package, providing ease of integration into a wide array of high-frequency systems. Analog Devices Inc. ensures that this product meets rigorous quality and performance standards, providing designers with a reliable and efficient solution for frequency multiplication requirements.
