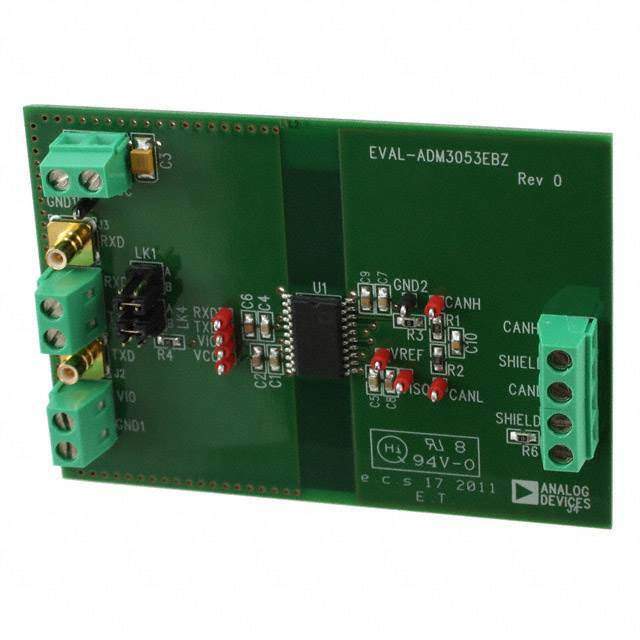

EVAL-ADM3053EBZ - Isolated CAN Transceiver Evaluation Board by Analog Devices Inc.

The EVAL-ADM3053EBZ by Analog Devices Inc. is a high-performance evaluation board designed for testing the capabilities of the ADM3053 signal and power isolated CAN transceiver. This robust evaluation module facilitates the development and testing of industrial CAN applications where isolation is a critical requirement for system integrity and safety.

Key Features:

• Isolation: The ADM3053 provides 2.5 kV RMS signal and power isolation, ensuring reliable operation in electrically noisy environments and protecting against harmful voltage levels.
• Integrated Isolated DC-to-DC Converter: The onboard isolated DC-to-DC converter simplifies power supply design by eliminating the need for a separate isolated power source for the CAN transceiver.
• High-Speed CAN Interface: The device supports the CAN 2.0A and 2.0B protocols and is capable of data rates up to 1 Mbps, making it suitable for high-speed industrial communication networks.
• Robust Bus Protection: The ADM3053 features extended common-mode range and ESD protection, enhancing the reliability and longevity of the application in harsh industrial settings.
• Diagnostic Features: Equipped with diagnostic features such as an integrated bus fault detection and reporting mechanism, the evaluation board aids in quick troubleshooting and system maintenance.
• Flexible Power Supply Options: The board can be powered through the USB interface or an external power supply, offering flexibility during development and testing.

Applications:

The EVAL-ADM3053EBZ is ideal for a variety of industrial and automotive applications where CAN communication and isolation are essential, including:

• Industrial Automation and Control Systems
• Automotive Electronics
• Building Automation
• Heavy Machinery
• Networked Sensors and Actuators

Design and Development Support:

Analog Devices Inc. provides comprehensive design resources for the EVAL-ADM3053EBZ, including detailed documentation, reference designs, and technical support, ensuring a smooth development process from concept to implementation. The evaluation board is designed to be user-friendly, with clear labeling and accessible test points to facilitate easy measurement and observation of the CAN transceiver's performance.

Overall, the EVAL-ADM3053EBZ from Analog Devices Inc. is an indispensable tool for engineers looking to evaluate the ADM3053's features and integrate isolated CAN communication capabilities into their designs.
