EVAL-ADG788EBZ Evaluation Board from Analog Devices Inc.

The EVAL-ADG788EBZ is a high-performance evaluation board designed for the ADG788, a low voltage CMOS device comprising dual independent single-pole, double-throw (SPDT) switches from Analog Devices Inc. This evaluation board is an ideal platform for designers and engineers to test the features and capabilities of the ADG788 switch in various electronic applications.

The ADG788 is well-suited for a wide range of applications, including audio and video signal routing, battery-powered systems, and sample-hold systems. It features 2.5 Ω (typical) on-resistance and 0.5 Ω on-resistance flatness, ensuring minimal signal distortion and high signal integrity. The switch operates in a single supply range of 1.8 V to 5.5 V, making it versatile for use in both portable and stationary equipment.

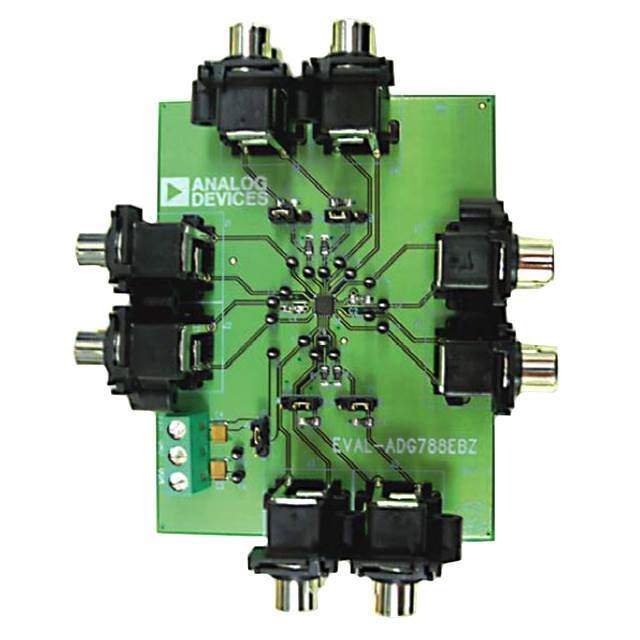

The EVAL-ADG788EBZ board is user-friendly and requires minimal setup to get started. It includes edge-mounted SMA connectors that provide a convenient interface for input and output signals. This allows for quick and easy connection to test equipment or other circuitry. The board also features jumpers and test points that facilitate easy configuration and probing of the device's functions.

For those interested in power consumption, the ADG788 boasts low power dissipation, with 0.01 µW (typical) at 3.3 V. This makes it an energy-efficient choice for power-sensitive designs. Additionally, the board's layout is optimized to support high-speed signal switching and minimize crosstalk, which is crucial for maintaining signal fidelity in complex systems.

The EVAL-ADG788EBZ evaluation board comes with comprehensive documentation, including a detailed user guide that covers the board's features, setup instructions, and schematic diagrams. This ensures that users can quickly become familiar with the board's capabilities and start their evaluations without delay.

In summary, the EVAL-ADG788EBZ from Analog Devices Inc. is a versatile and easy-to-use evaluation board that is perfect for testing the performance of the ADG788 switch. Its low on-resistance, low power consumption, and high signal integrity make it suitable for a multitude of applications that require reliable and efficient signal routing.
