The ADXRS649BBGZ-RL is a high-performance, angular rate sensor (gyroscope) from Analog Devices Inc., designed to meet the demanding needs of industrial and instrumentation applications. This robust gyroscope offers excellent vibration immunity and is capable of sensing angular velocity with high precision and reliability.

Key Features

• High Measurement Range: The device can measure angular rates up to ±2000 degrees per second, making it suitable for capturing fast rotational movements.
• High Vibration Rejection: With its advanced vibration rejection capabilities, the ADXRS649BBGZ-RL performs reliably in environments subject to shock and vibration.
• Temperature Stability: The gyroscope's output remains stable over a wide temperature range, ensuring consistent performance in varying conditions.
• Analog Output: It features a continuous analog output that provides a smooth signal corresponding to the angular rate.
• Self-Test Functionality: The built-in self-test feature ensures the integrity of the sensor's operation, which can be activated by a digital signal.

Applications

The ADXRS649BBGZ-RL is ideal for a variety of applications, including:

• Platform stabilization and control
• High-precision instrumentation
• Robotics and automation
• Automotive safety systems
• Sports and medical device tracking

Technical Specifications

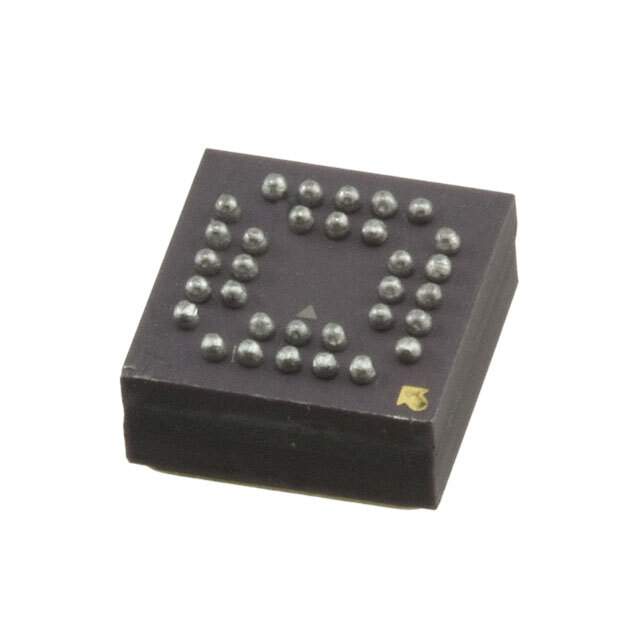

The gyroscope is housed in a compact BGA package and operates within a supply voltage range of 4.75V to 5.25V. It is characterized by a low drift rate and a wide operational temperature range, making it highly adaptable to complex systems requiring a dependable motion sensing solution.

Ordering Information

The ADXRS649BBGZ-RL is available in tape and reel packaging, facilitating efficient handling and assembly during mass production. Analog Devices Inc. ensures the highest quality and reliability of their sensors, providing robust solutions for advanced motion control applications.

For detailed specifications, application notes, and additional resources, please refer to the official Analog Devices Inc. datasheets and product documentation.
