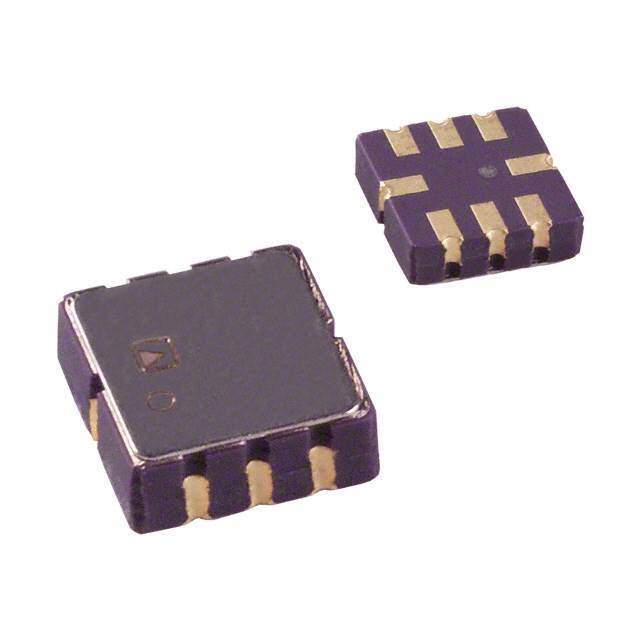

ADXL001-70BEZ-R7

Part No ADXL001-70BEZ-R7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description High Performance, Wide Bandwidth Accelerometer | ACCELEROMETER 70G ANALOG 8LCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Analog Devices Inc.
Packaging Reel
Status Obsolete
Type Analog
Axis X
Acceleration Range ±70g
Sensitivity (mV/g) 16
Bandwidth 32kHz
Output Type Analog Voltage
Supply Voltage (V) 3.135V ~ 6V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-CLCC
Supplier Device Package 8-LCC (5x5)
Family Part Number ADXL001
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1142724-ADXL001-70BEZ-R7
Manufacturer Homepage www.analog.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADXL001-70BEZ-R7 CAD Model

Description

ADXL001-70BEZ-R7: High-Performance, Wide Bandwidth Accelerometer

The ADXL001-70BEZ-R7 is a cutting-edge accelerometer manufactured by Analog Devices Inc., designed to provide engineers and designers with a highly accurate and responsive sensor for a variety of applications. This accelerometer is part of the ADXL001 series, known for its exceptional performance in measuring acceleration with a wide frequency range.

Key Features and Benefits

  • Wide Bandwidth: The ADXL001-70BEZ-R7 offers a wide bandwidth of up to 22 kHz, making it an excellent choice for applications requiring high-frequency vibration and shock sensing.
  • High-G Range: With a measurement range of ±70g, this accelerometer can accurately capture high-speed events and impacts, suitable for industrial, automotive, and aerospace applications.
  • High Output: It features a high analog output that increases with acceleration, providing a clear and precise signal for analysis and processing.
  • Temperature Stability: The device operates reliably over a temperature range of -40°C to +125°C, ensuring consistent performance in challenging environments.
  • Robust Design: Encased in a small, hermetically sealed ceramic package, the ADXL001-70BEZ-R7 is designed to withstand harsh conditions without compromising its integrity or performance.

Applications

The versatility of the ADXL001-70BEZ-R7 allows it to be used across various fields that require precise motion detection and analysis, including:

  • Industrial Equipment Monitoring
  • Automotive Crash Detection
  • Aerospace Navigation and Control Systems
  • Structural Health Monitoring
  • Seismic Imaging

Technical Specifications

The ADXL001-70BEZ-R7 is designed with the following technical specifications:

  • Sensitivity: Typically 2.1 mV/g
  • Frequency Response: 0 to 22 kHz
  • Supply Voltage: 3.3 V to 5 V
  • Output Type: Analog Voltage
  • Package: 5 mm × 5 mm × 2 mm CLCC

Whether you're designing high-precision instruments or rugged industrial machinery, the ADXL001-70BEZ-R7 from Analog Devices Inc. offers the performance and durability needed to meet the most demanding sensing requirements.
