The AD9957BSVZ is a state-of-the-art integrated circuit from Analog Devices Inc., designed to meet the demanding requirements of complex communication systems. This high-performance device is a part of Analog Devices' wide portfolio of Direct Digital Synthesizer (DDS) products, which are known for their exceptional frequency control and stability.

Key Features

• High-Speed DDS Core: The core of the AD9957BSVZ operates at high speeds, enabling rapid frequency hopping and agile signal generation, which is crucial for advanced communication systems.
• Integrated 14-Bit DAC: The device includes a high-resolution 14-bit Digital-to-Analog Converter (DAC), ensuring accurate signal representation and high dynamic range performance.
• Programmable Clock Multiplier: An on-chip PLL (Phase-Locked Loop) allows for a flexible clocking strategy, making it easier to synchronize the device with various system clock frequencies.
• Flexible Modulation Capabilities: The AD9957BSVZ supports a wide range of modulation schemes, including amplitude, phase, and frequency modulation, catering to diverse application needs.

Applications

The versatility of the AD9957BSVZ makes it suitable for a wide array of applications, such as:

• Wireless and Wired Communication Systems
• Test and Measurement Equipment
• Signal Generation and Modulation
• Radar and Satellite Systems
• Electronic Warfare and Defense Electronics

Technical Specifications

The AD9957BSVZ provides robust technical specifications that assure performance across various parameters:

• Supply Voltage: Typically 1.8V for core, 3.3V for I/O
• Operating Temperature Range: Specified performance from -40°C to +85°C

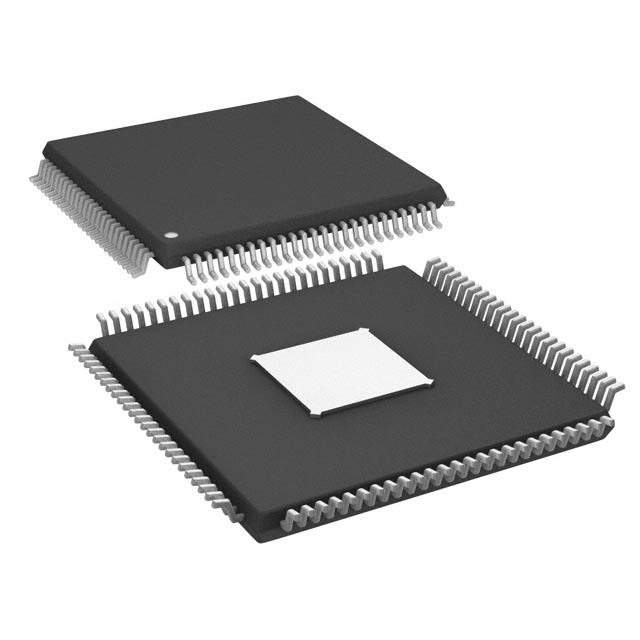

• Package: Compact 100-lead LQFP (Low-Profile Quad Flat Package)
• RoHS Compliant: Manufactured with environmentally friendly materials and processes

With the AD9957BSVZ, Analog Devices Inc. provides an innovative solution for designers looking to integrate a high-performance DDS into their systems, ensuring reliability, precision, and efficiency in a wide range of electronic applications.
