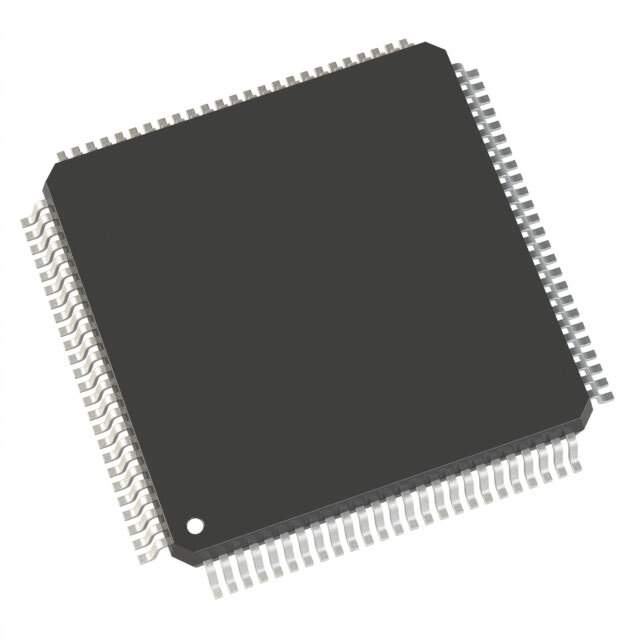

Analog Devices Inc. AD9858BSVZ Integrated Circuit Description

The AD9858BSVZ is a high-performance, direct digital synthesizer (DDS) integrated circuit from Analog Devices Inc., designed to deliver superior spectral purity and frequency agility. This versatile component is ideal for applications requiring complex modulation and fine frequency resolution, such as wireless communication, radar systems, signal generation, and instrumentation.

Key Features

• High Frequency Resolution: With a 1 GHz clock rate, the AD9858BSVZ can generate frequencies with extremely fine resolution, making it suitable for demanding applications where precision is key.
• Integrated 10-bit DAC: The on-chip 10-bit digital-to-analog converter ensures smooth and high-quality analog signal output, reducing the need for external components and simplifying system design.
• Programmable Modulation Capabilities: This device supports various modulation schemes, including amplitude, phase, and frequency modulation, offering designers flexibility to meet different system requirements.
• Multiple Output Waveforms: Users can select from a variety of output waveforms, such as sine, square, or triangular waves, to match the specific needs of their application.

Applications

• Wireless Communication Systems
• Radar and Scanning Systems
• Test and Measurement Equipment
• Electronic Warfare
• Network Synchronization

The AD9858BSVZ is housed in a compact surface-mount package, making it suitable for space-constrained applications while providing robust performance. Its advanced features, such as a fast settling time and low phase noise, contribute to system reliability and performance. The integrated PLL (Phase-Locked Loop) and high-speed comparator further enhance its capabilities, enabling it to produce a clean, stable output signal across a wide frequency range.

Engineers and designers can leverage the AD9858BSVZ's functionality to build high-performance systems that require dynamic frequency control and modulation. With Analog Devices' reputation for quality and performance, this DDS chip represents a reliable solution for advanced signal processing tasks.

For detailed specifications and application support, Analog Devices Inc. provides comprehensive technical documentation and design resources to assist with the integration of the AD9858BSVZ into various systems.
