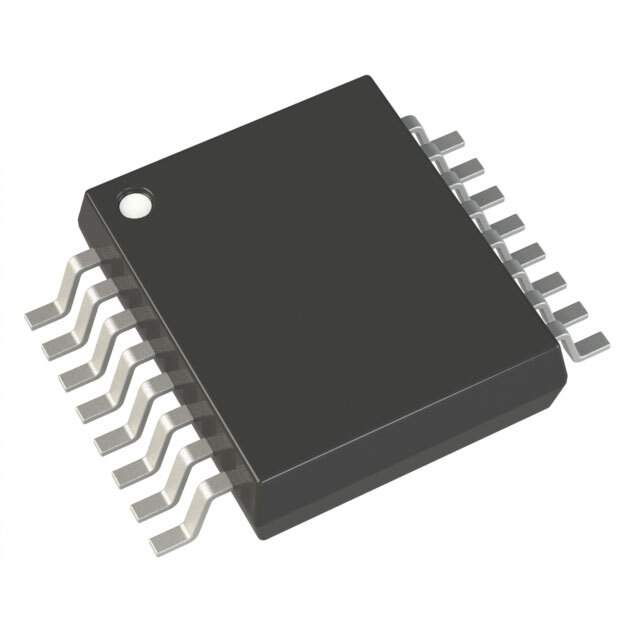

Product Overview: AD5934YRSZ-REEL7

The AD5934YRSZ-REEL7 is a high precision impedance converter system solution from Analog Devices Inc. that combines an onboard frequency generator with a 12-bit, 1 MSPS, analog-to-digital converter (ADC). This integrated circuit is designed to measure impedance over a frequency range of 1kHz to 100kHz, making it an ideal choice for a wide range of applications including biomedical analysis, fluid monitoring, and material property analysis.

Key Features

• Integrated Frequency Generator: Capable of producing a system output sweep frequency range from 1kHz to 100kHz, allowing for a detailed impedance spectrum analysis.
• High Resolution ADC: The 12-bit ADC operates at a 1 MSPS sampling rate, ensuring precise impedance measurements.
• Programmable Output Voltage Range: The device supports a programmable voltage range of 200 mV to 2 V peak-to-peak, giving users control over the signal amplitude.
• On-Chip DSP: Performing discrete Fourier transforms (DFTs) on the complex impedance data to calculate magnitude and phase information.
• System Calibration: Includes system calibration functions to maintain measurement accuracy by compensating for system variances.
• Temperature Sensor: An integrated temperature sensor ensures accurate temperature tracking and compensation.
• Communication Interface: The device uses an I2C compatible serial interface for communication with microcontrollers or processors.
• Power Efficiency: Designed for low power consumption, suitable for portable applications.
• Packaging: Available in a compact 16-lead SSOP (Shrink Small Outline Package), ideal for space-constrained applications.

Applications

The AD5934YRSZ-REEL7 is versatile enough to be used in a variety of applications, including but not limited to:

• Biomedical and biochemical analysis
• Corrosion monitoring and material degradation
• Proximity sensing
• Fluid level and quality analysis
• Environmental sensing

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD5934YRSZ-REEL7 is no exception. It is manufactured to meet the highest industry standards for performance and reliability, ensuring it will meet the needs of even the most demanding applications.
