AD594CDZ Temperature Transducer from Analog Devices Inc.

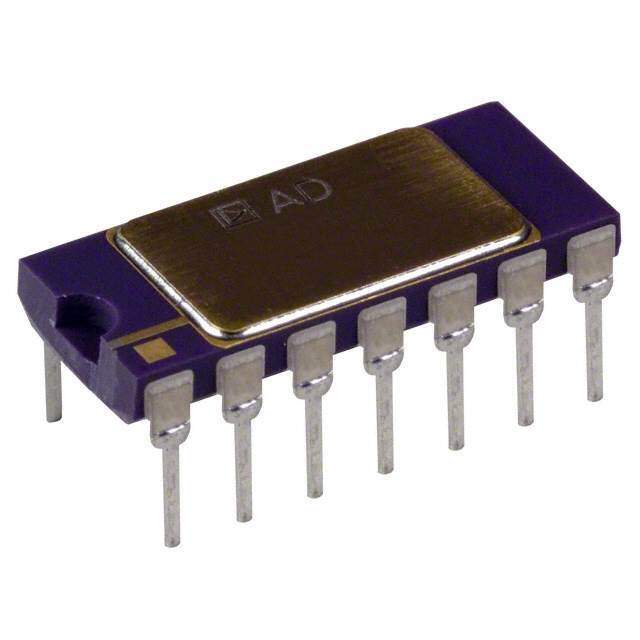

The AD594CDZ is a precision instrumentation device manufactured by Analog Devices Inc., designed to simplify the process of temperature measurement and control. This integrated circuit (IC) is specifically tailored for use with type J thermocouples, providing an accurate, easy-to-use solution for temperature sensing applications. The AD594CDZ comes in a compact 14-lead ceramic dual in-line package (CDIP), ensuring durability and reliability for a wide range of environments.

One of the standout features of the AD594CDZ is its built-in cold junction compensation, which accounts for variations in ambient temperature, ensuring the accuracy of the thermocouple reading. This feature eliminates the need for additional components and complex calibration routines, making it a convenient choice for engineers and designers.

The device offers a linearized output of 10mV/°C, which corresponds directly to the temperature measured by the thermocouple. This linear relationship simplifies the process of converting the analog signal into a digital form for further processing or display. Moreover, the AD594CDZ requires only a single power supply ranging from +5V to +15V, making it compatible with most standard systems and simplifying power management within the design.

With a wide operating temperature range, the AD594CDZ is suitable for use in various industrial and commercial applications. These include process control systems, temperature monitoring of electronic equipment, HVAC systems, and any other application where precise temperature data is critical. The device also features a high impedance differential input, which enhances noise rejection and improves the overall stability of the temperature measurement.

Overall, the AD594CDZ from Analog Devices Inc. is a robust, accurate, and user-friendly solution for integrating type J thermocouple-based temperature measurements into a variety of systems. Its ease of use, combined with high precision, makes it an excellent choice for engineers looking to streamline their temperature sensing designs.
