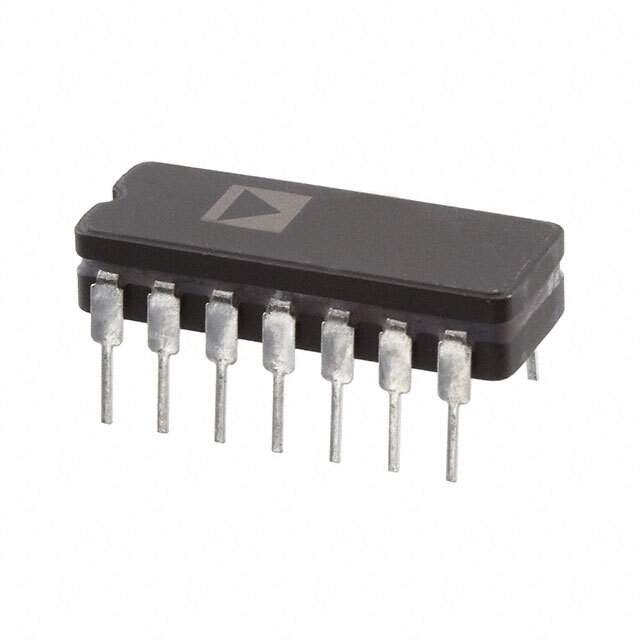

Analog Devices Inc. AD536AJQ Product Overview

The AD536AJQ is a high-performance, integrated true RMS-to-DC converter produced by Analog Devices Inc. Designed with precision and ease of use in mind, this innovative component offers accurate measurement of waveform signals over a wide range of applications. It is particularly suitable for systems that require an accurate RMS calculation for complex waveforms, where simple averaging methods would not suffice.

The device is capable of computing the true root-mean-square level of a waveform, regardless of its shape or complexity. This makes it an essential component in professional audio equipment, instrumentation, and other applications where precise power measurement is critical. The AD536AJQ operates with a single-ended input and can accept a wide range of input levels, while providing a high level of accuracy.

Key Features of the AD536AJQ:

• Wide Bandwidth: The converter can handle signals with frequencies up to 300 kHz, making it suitable for a broad spectrum of audio and signal processing tasks.
• High Accuracy: It provides a typical accuracy of ±0.5% of the full scale, ensuring reliable and precise readings.
• Low Power Consumption: With a quiescent current of typically 1.2 mA, the AD536AJQ is optimized for low power consumption without compromising performance.
• Flexible Power Supply: The device supports a wide power supply range from ±5 V to ±18 V, accommodating a variety of system designs and requirements.
• Temperature Stability: It features a temperature coefficient of typically 200 ppm/°C, ensuring consistent performance across a wide temperature range.
• Monolithic Integration: The AD536AJQ integrates a precision voltage reference and an operational amplifier, simplifying circuit design and reducing the need for additional components.

Available in a sturdy 14-lead CERDIP package, the AD536AJQ ensures a robust and reliable solution for demanding environments. Its ease of use, combined with the high level of integration, allows designers to implement an RMS-to-DC conversion solution with minimal external parts, saving on both space and cost.

Whether it's for precision measurement equipment, power monitoring systems, or audio signal processing, the AD536AJQ from Analog Devices Inc. stands out as a versatile and precise component that can significantly enhance the performance of your electronic designs.
