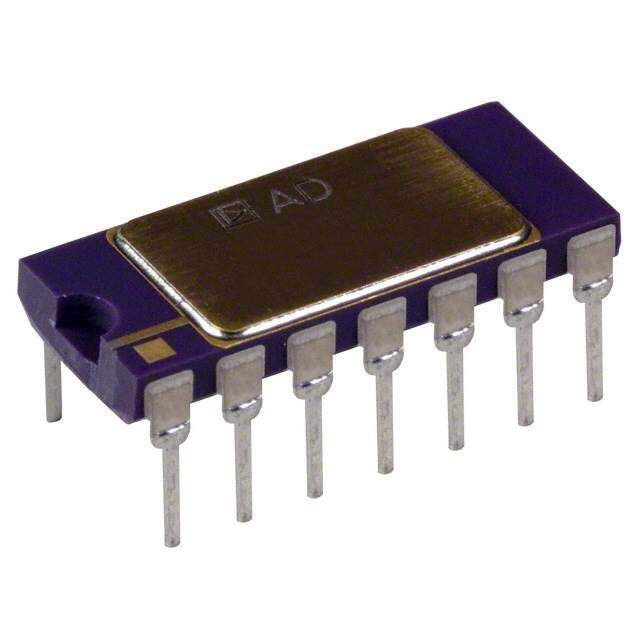

Introducing the AD636JD: A High Precision RMS-to-DC Converter
The AD636JD is a state-of-the-art, low power, precision integrated circuit from Analog Devices Inc. that is designed to provide accurate RMS-to-DC conversion. This monolithic device offers a level of performance that surpasses the capabilities of conventional RMS converters, making it an ideal choice for a wide range of applications, including signal processing, instrumentation, and audio equipment.
At the heart of the AD636JD lies its exceptional accuracy and stability. The device is capable of computing the true root-mean-square level of complex waveforms, with less than 0.5% error over a 0 to 70°C temperature range. This precision is maintained for input frequencies from DC to 200 kHz, ensuring reliable performance for both low-frequency signals and those in the higher frequency spectrum.
The AD636JD is also known for its ease of use. It requires no external trims to achieve its specified performance, which means it can be integrated into a system without the need for complex calibration procedures. Additionally, this RMS-to-DC converter operates on a single supply voltage ranging from 5 V to 36 V, or dual supplies of ±2.8 V to ±18 V, providing designers with flexibility in their power supply design.
One of the key features of the AD636JD is its low power consumption. With a typical quiescent current of only 1.0 mA, this device is suitable for battery-powered equipment and other applications where power efficiency is crucial. Furthermore, the converter is packaged in a compact 14-lead SOIC, which minimizes board space and is conducive to high-density circuit designs.
The AD636JD also includes an auxiliary dB output that provides a voltage that is proportional to the logarithm of the input signal amplitude, making it particularly useful for signal level detection or compression applications.
In summary, the AD636JD from Analog Devices Inc. is a versatile, high-performance RMS-to-DC converter that offers designers accuracy, ease of use, and efficiency. Whether it's for professional audio equipment, precision instrumentation, or signal processing, the AD636JD is a reliable choice that ensures accurate measurement of signal power without the need for complex external calibration.
