Same model may have multiple batches, images only for reference.

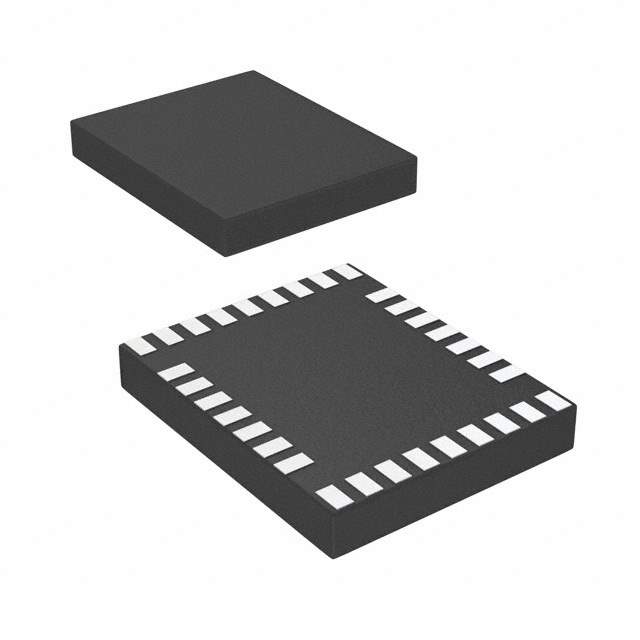

LP3936SLX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP3936SLX/NOPB

Part No LP3936SLX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 32TCSP
Datasheet
LP3936SLX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 9
Operating Input Voltage(Min) 3V
Maximum Supply Voltage 6V
Output Voltage 5.3V
Channel Output Current 25mA, 120mA (Flash)
Frequency 1MHz
Dimming PWM
Applications Backlight, Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 32-TLGA (4.5x5.5)
Win Source Part Number 109397-LP3936SLX/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LP3936SLX/NOPB CAD Model

Description

The LP3936SLX/NOPB is a high-performance, multi-functional integrated circuit (IC) from Texas Instruments. It is designed to cater to the needs of modern electronic devices and systems, offering superior performance, reliability, and efficiency.

  • Functionality: Dual step-down DC/DC and Linear converter
  • DC/DC Converters: Two PWM (Pulse Width Modulation) step-down converters
  • Linear Regulators: Two low-noise, high PSRR LDOs
  • Package: Micro SMD package
  • Input Voltage Range: Wide input voltage range
  • Protection Features: Over-temperature and over-current protection
  • Soft-Start: Programmable output voltage and adjustable soft-start time
  • Power Efficiency: High switching frequency and low quiescent current
  • Applications: Smartphones, tablets, digital cameras, and other portable devices
