AD534KH

Part No AD534KH
Manufacturer Analog Devices Inc.
Catalog Linear - Analog Multipliers, Dividers

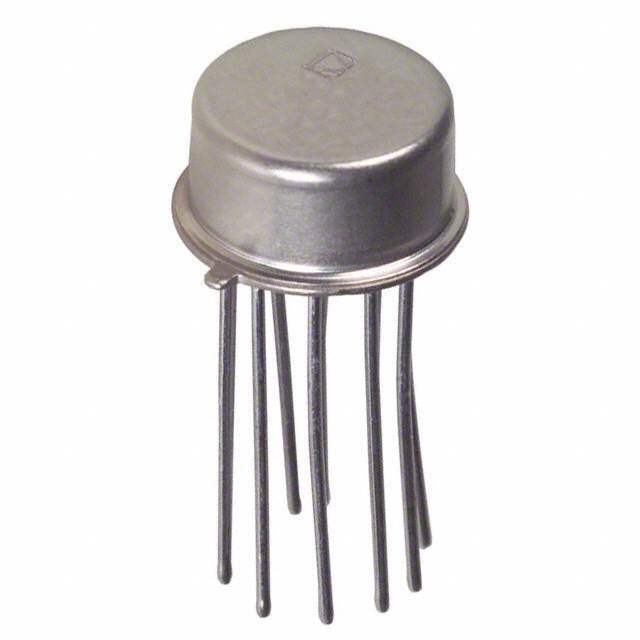

Description IC PREC MULTIPLIER TO-100-10 / Analog Multiplier/Divider 4-Quadrant TO-100-10
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Analog Multipliers, Dividers
Mfr Analog Devices Inc.
Package Bulk
Product Status Obsolete
Function Analog Multiplier/Divider
Number of Bits/Stages 4-Quadrant
Package / Case TO-100-10 Metal Can
Supplier Device Package TO-100-10
Base Product Number AD534
Standard Package 8 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 553474-AD534KH
Ultra Librarian 3D Model Ultra Librarian AD534KH CAD Model

Description

The AD534KH is a high-performance, precision integrated circuit multiplier from Analog Devices Inc. Renowned for its exceptional accuracy and versatility, this device is designed to offer a superior solution for a wide range of applications, including analog computation, signal processing, and automatic gain control systems.

Key Features

  • High Precision: The AD534KH boasts excellent nonlinearity specifications of 0.1% max on the K grade, ensuring high accuracy in multiplication, division, and other complex mathematical operations.
  • Wide Dynamic Range: It offers a dynamic range of 100 dB, making it suitable for processing signals with a wide range of amplitudes without signal degradation.
  • Low Noise: With a low noise characteristic, this device maintains signal integrity, which is critical for high-fidelity applications.
  • Monolithic Construction: The monolithic construction of the AD534KH ensures high reliability and stability over temperature variations, which is essential for precision applications.
  • Flexible Power Supply: It can operate from dual power supplies of up to ±18 V or a single supply of up to 36 V, providing versatility in different circuit configurations.

Applications

  • Analog Computations
  • Signal Processing Circuits
  • Automatic Gain Control Systems
  • Voltage-Controlled Amplifiers
  • Function Generators
  • Four-Quadrant Multipliers

Product Specifications

Parameter Value
Nonlinearity 0.1% max (K grade)
Dynamic Range 100 dB
Power Supply ±18 V or 36 V single
Package Metal Can

The AD534KH represents Analog Devices Inc.'s commitment to providing high-quality, precision components that meet the rigorous demands of modern electronic systems. Its robust feature set and impressive specifications make it an excellent choice for professionals seeking reliable and accurate analog processing capabilities.
