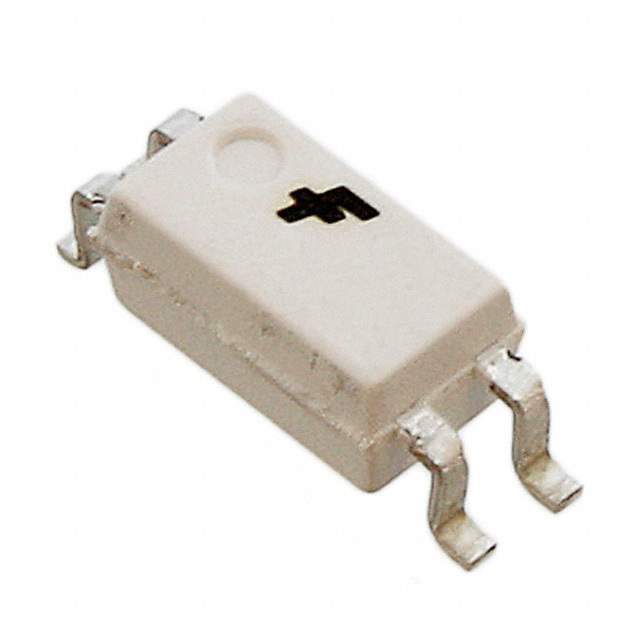

The HMHAA280 is a solid state relay (SSR) from Fairchild/ON Semiconductor, offering electrical isolation and switching capabilities for a variety of applications. This SSR utilizes an infrared LED and a photovoltaic diode array to provide optical isolation between the input and output, eliminating the need for mechanical contacts. Its compact size and reliable performance make it suitable for industrial control, instrumentation, and telecommunications applications.

Applications

• Industrial control systems
• Instrumentation equipment
• Telecommunications switching
• Motor control
• Security systems

Features

• Solid state design
• High isolation voltage
• Low on-resistance
• Fast switching speed
• Surface mount package

Benefits

• Improved reliability compared to mechanical relays
• Enhanced safety due to high isolation
• Reduced power consumption
• Faster response times
• Easy to integrate into circuit boards

Additional Details

The HMHAA280 features a high isolation voltage, providing excellent protection against voltage transients. The low on-resistance minimizes power dissipation and improves efficiency. Its fast switching speed allows for precise control of the output signal. The surface mount package simplifies assembly and reduces board space requirements. This SSR is designed for use in a wide range of operating conditions. It provides a clean and reliable switching solution for various applications. It is inherently immune to electrical noise and vibration, which are common challenges for electromechanical relays.
