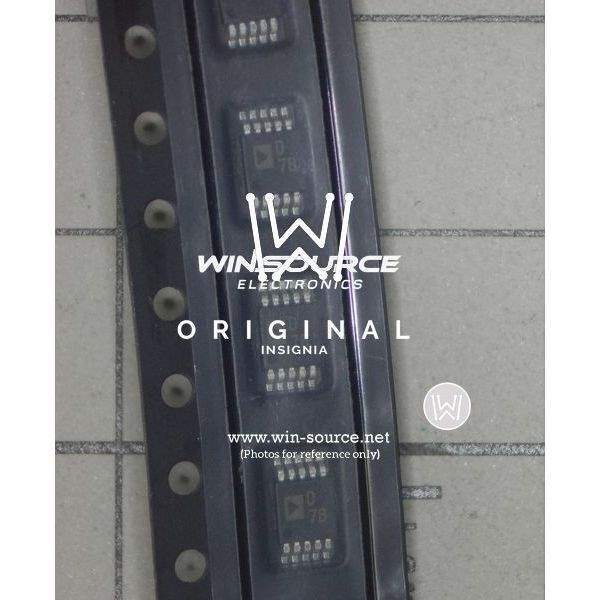

Product Overview: AD5322BRMZ-REEL

Manufacturer: Analog Devices Inc.

The AD5322BRMZ-REEL is a high-performance, dual 12-bit digital-to-analog converter (DAC) offered by Analog Devices Inc., a leader in precision high-performance integrated circuits. This DAC is part of a family of devices that provide a combination of excellent data conversion quality and compact packaging, making it an ideal choice for a wide range of applications, including industrial control systems, digital signal processing, and automated test equipment.

Key Features

• Resolution: The AD5322BRMZ-REEL boasts a 12-bit resolution, providing fine analog output levels for precise control and signal generation.
• Output Range: It offers two selectable output ranges, 0 V to VREF and 0 V to 2×VREF, allowing for flexible scaling of the output voltage to suit various application needs.
• Interface: The device includes a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a wide range of microcontrollers and digital systems.
• Power Supply: It operates from a single 2.5 V to 5.5 V power supply, making it versatile for use in both 3 V and 5 V systems.
• Power-Down Function: The DAC features a power-down function, which reduces the current consumption to 200 nA at 5 V, providing power efficiency for battery-operated devices.
• Packaging: The device is available in an 8-lead MSOP (Mini Small Outline Package) that is suitable for space-constrained applications.
• Temperature Range: It operates across the industrial temperature range of -40°C to +105°C, ensuring reliability and performance under varying environmental conditions.

Applications

The AD5322BRMZ-REEL is designed to meet the needs of multiple applications where accurate digital-to-analog conversion is essential. It is commonly used in:

• Process Control and Automation
• Data Acquisition Systems
• Portable Battery-Powered Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources

In conclusion, the AD5322BRMZ-REEL from Analog Devices Inc. is a versatile and high-quality DAC solution that provides designers with a compact, efficient, and accurate component for their analog output requirements.
