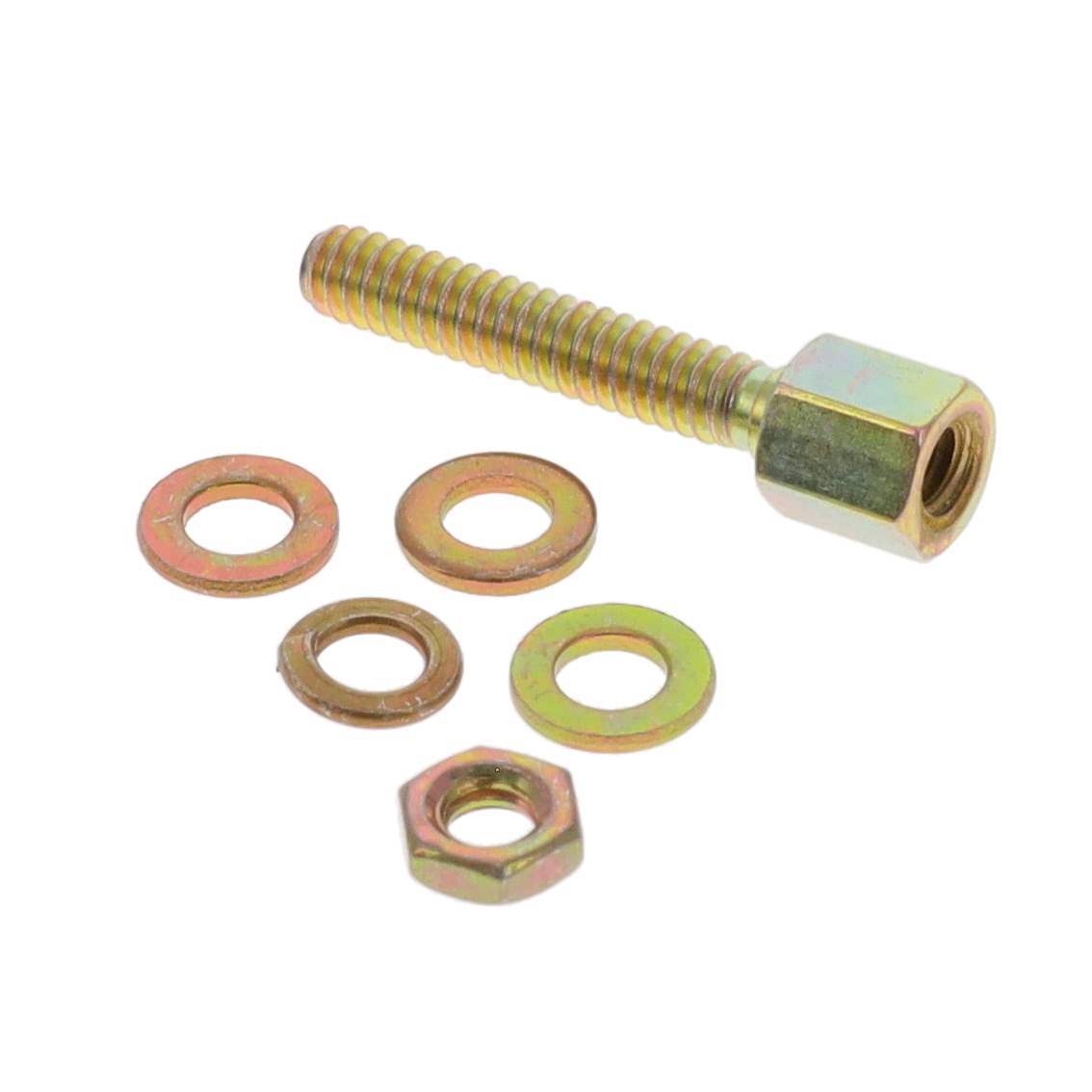

Same model may have multiple batches, images only for reference.
M24308/26-2FAmphenol Positronic
Same model may have multiple batches, images only for reference.

M24308/26-2F

Part No M24308/26-2F
Manufacturer Amphenol
Catalog D - Sub, D - Shaped Connectors - Accessories - Jackscrews
Description D-SUB
Datasheet
M24308/26-2F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208071-M24308/26-2F
Manufacturer Amphenol Positronic
Category Connectors, Interconnects -D-Sub, D-Shaped Connectors -D-Sub, D-Shaped Connector Jackscrews
Series D
Package Bag
Product Status Active
Accessory Type Jackscrew Socket
For Use With/Related Products D-Sub Connectors
Features Hardware Included
Length - Threaded Portion Below Head 0.614" (15.60mm)
Length - Below Head 0.614" (15.60mm)
Ultra Librarian 3D Model Ultra Librarian M24308/26-2F CAD Model

Description

Features
• Offered in 9, 15, 25, 37, and 50 position plugs and sockets
• Available with gold flash or 30μin. gold plating.
• Offered with .120 mounting holes, optional 4-40 clinch nuts, or dual float bushings
• Approvals:
• UL Recognized - Files E170218 (UL1977) and E130965 (UL1863).
• CSA Approved - File LR31996.
• See pages 5-6 for standard dimensions, contact arrangements, and panel mounting specifications.
