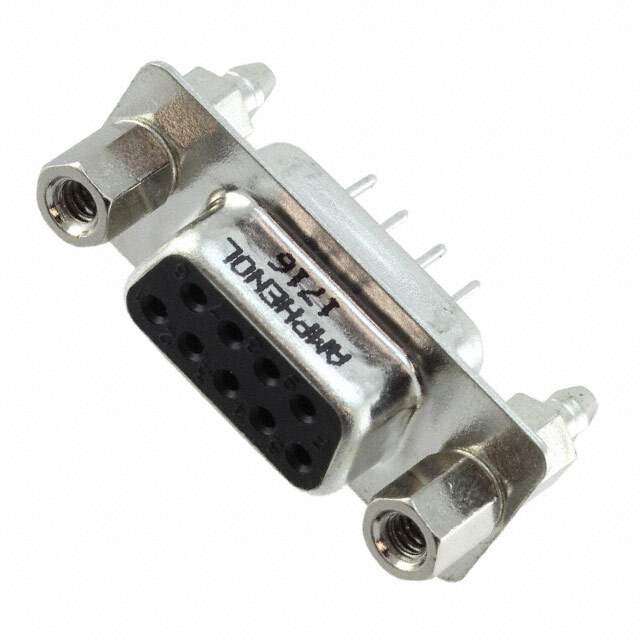

L77SDEH09SOL2RM8 Real Image
Same model may have multiple batches, images only for reference.

L77SDEH09SOL2RM8

Part No L77SDEH09SOL2RM8
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number L77SDEH09
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 90
Win Source Part Number 1333196-L77SDEH09SOL2RM8
Ultra Librarian 3D Model Ultra Librarian L77SDEH09SOL2RM8 CAD Model

Description

The L77SDEH09SOL2RM8 is a D-sub connector assembly from Amphenol ICC.

  • Positions: 9
  • Connector Type: Receptacle with Female Sockets
  • Feature: Board Lock
  • Contact Type: Signal
  • Number of Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Form: Stamped
  • Contact Material: Phosphor Bronze
  • Shell Material: Steel
  • Shell Plating: Tin Plated
  • Dielectric Material: Thermoplastic and Glass Filled
  • Feature: Flanged
  • Screwlock: Board Side (4-40) and Mating Side, Female Screwlock (4-40)
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 5A
  • RoHS Compliant: Yes
  • ECCN: EAR99
