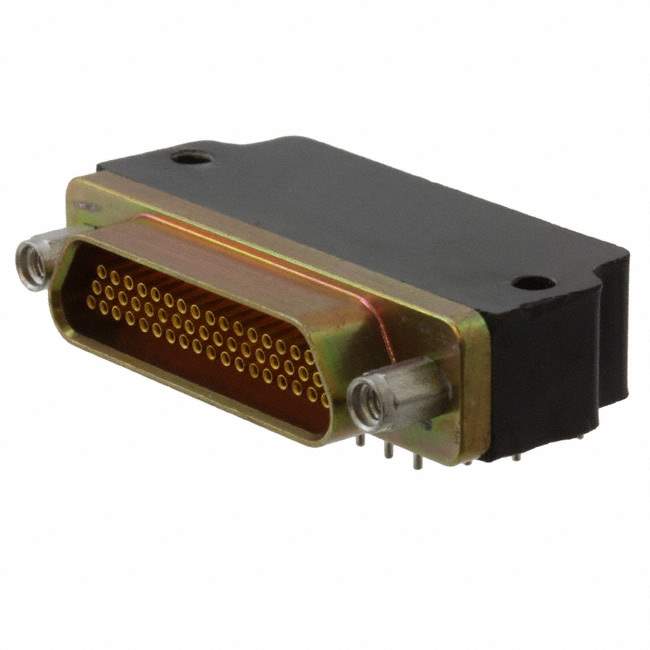

MDM-51SCBRP Real Image
Same model may have multiple batches, images only for reference.

MDM-51SCBRP

Part No MDM-51SCBRP
Manufacturer ITT Cannon, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN MICRO-D RCPT 51POS R/A SLDR / 51 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer ITT Cannon, LLC
Packaging Bulk
Connector Style D-Type, Micro-D
Connector Type Receptacle, Female Sockets
Number of Positions 51
Number of Rows 5
Mounting Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Shell Material, Finish Aluminum, Yellow Chromate Plated Cadmium
Contact Finish Gold
Current Rating (Amps) 3A
Features Shielded
Dielectric Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number IMDM-51SCBRP-ND,1003-MDM-51SCBRP-ND,IMDM-51SCBRP,096523-0338,1003-1306,MDM-51SCBRPPG,MDM-51SCBRP-ND,MDM51SCBRP,1003-MDM-51SCBRP,MDM-51SCBRPPG-ND,MDM51SCBRP-ND,965230338
Standard Package 1
Win Source Part Number 1333166-MDM-51SCBRP
Ultra Librarian 3D Model Ultra Librarian MDM-51SCBRP CAD Model

Description

The ITT Cannon, LLC 1333166-MDM-51SCBRP is a D-Type, Micro-D style connector with a receptacle, female sockets connector type.

  • Positions: 51
  • Rows: 5
  • Shielded: Yes
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Shell Material: Aluminum
  • Shell Finish: Yellow Chromate Plated Cadmium
  • Dielectric Material: Liquid Crystal Polymer (LCP)
  • Mounting: Through-Hole, Panel Mount, and Right Angle
  • Flange Feature: Mating Side, Female Screwlock (2-56)
  • Temperature Range: -55°C ~ 125°C
  • RoHS: Non-Compliant
