Same model may have multiple batches, images only for reference.

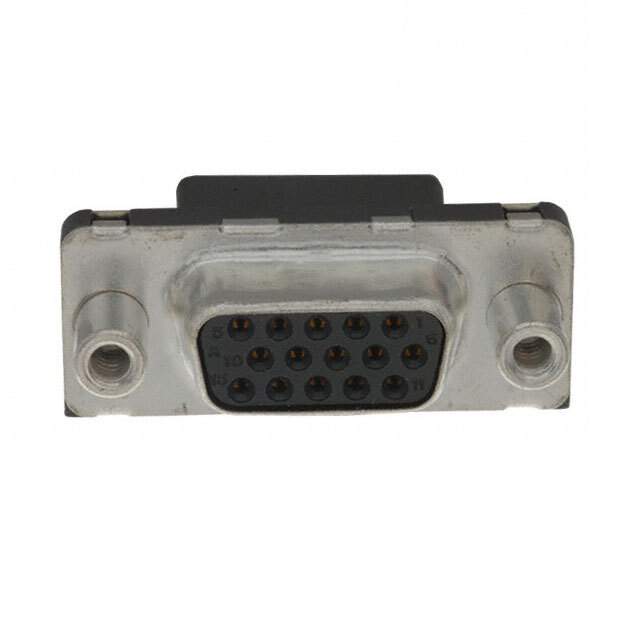

ICD15S13E6GV00LF Real Image
Same model may have multiple batches, images only for reference.

ICD15S13E6GV00LF

Part No ICD15S13E6GV00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P R/A SLDR / 15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Bulk
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.350" (8.89mm)
Features Board Lock, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polyester
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number ICD15S13
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-ICD15S13E6GV00LF,609-2802
Standard Package 30
Win Source Part Number 1333144-ICD15S13E6GV00LF
Ultra Librarian 3D Model Ultra Librarian ICD15S13E6GV00LF CAD Model

Description

The Amphenol ICC (FCI) ICD15S13E6GV00LF 15-position female D-sub connector is a high-density connector with a black color.

  • Voltage Rating: 300V
  • Current Rating: 3A
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Mounting: Through Hole and Right Angle
  • Temperature Range: -55°C ~ 125°C
  • RoHS Compliant: Yes
