Same model may have multiple batches, images only for reference.

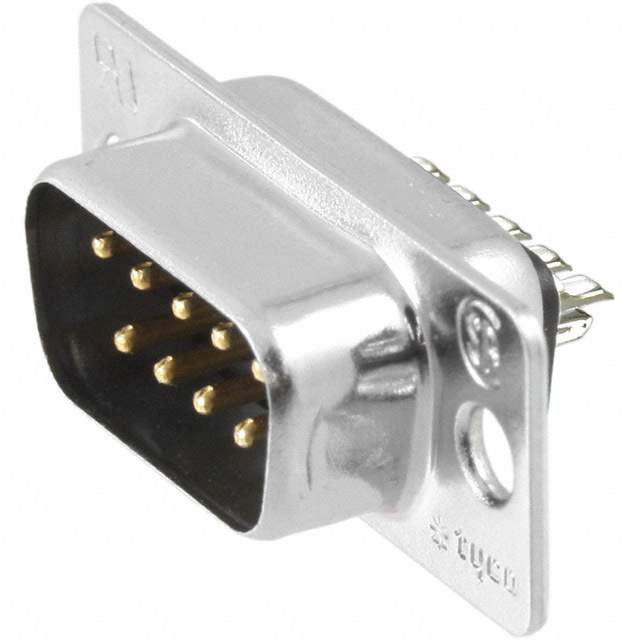

5-747904-4 Real Image
Same model may have multiple batches, images only for reference.

5-747904-4

Part No 5-747904-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS SLDR CUP / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
5-747904-4 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 250V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747904
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number A102056,5-747904-4-ND,57479044,2266-5-747904-4
Standard Package 50
Win Source Part Number 1333187-5-747904-4
Ultra Librarian 3D Model Ultra Librarian 5-747904-4 CAD Model

Description

The TE Connectivity AMP Connectors 1333187-5-747904-4 is a D-Sub connector assembly that has 9 positions and is packaged in a tray.

  • Number of Positions: 9
  • Package: Tray
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Temperature Range: -55°C to 105°C
  • Shell Size: 1 (DE, E)
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor Undefined
