Same model may have multiple batches, images only for reference.

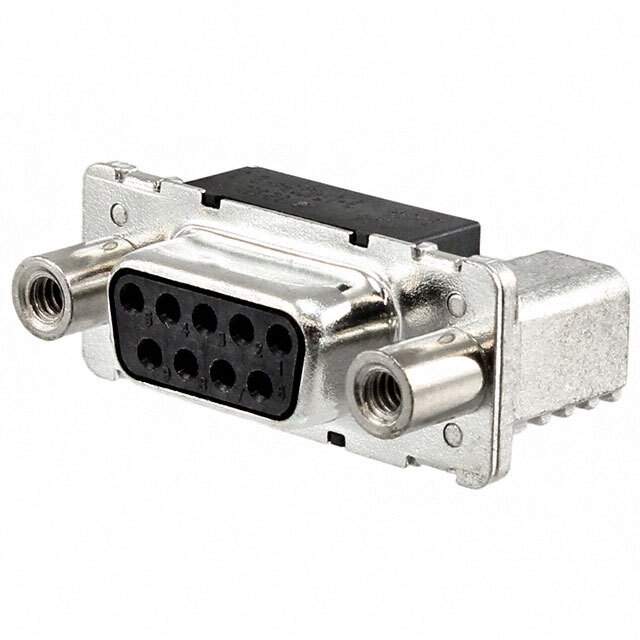

3-1740194-2 Real Image
Same model may have multiple batches, images only for reference.

3-1740194-2

Part No 3-1740194-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9P SMD R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
3-1740194-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Surface Mount, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 31.5µin (0.80µm)
Material Flammability Rating UL94 V-0
Features Board Guide
Color Black
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1740194
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 317401942,A108289CT,A108289TR,A108289DKR,2266-3-1740194-2TR,-3-1740194-2-SI
Standard Package 4,500
Win Source Part Number 1333168-3-1740194-2
Ultra Librarian 3D Model Ultra Librarian 3-1740194-2 CAD Model

Description

The 1333168-3-1740194-2 is a D-sub connector assembly manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1333168-3-1740194-2
  • Mounting Style: Surface Mount, Right Angle
  • Dielectric Material: Polycyclohexylenedimethylene Terephthalate (PCT)
  • Temperature Range: -55°C to 105°C
  • RoHS: Compliant
