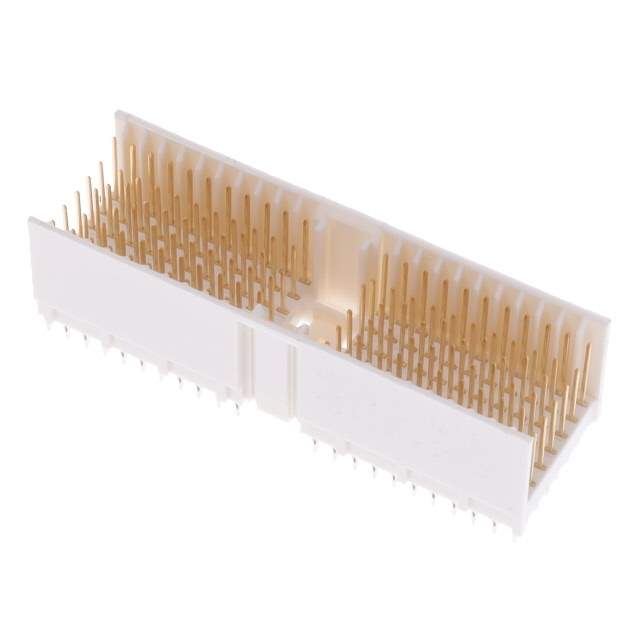

HM2P07PDU1A1N9LF Real Image1 HM2P07PDU1A1N9LF Real Image2
Same model may have multiple batches, images only for reference.
HM2P07PDU1A1N9LF Real Image1 HM2P07PDU1A1N9LF Real Image2
HM2P07PDU1A1N9LF Real Image1 HM2P07PDU1A1N9LF Real Image2
Same model may have multiple batches, images only for reference.

HM2P07PDU1A1N9LF

Part No HM2P07PDU1A1N9LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HEADER 154POS 2MM PRESS-FIT / 154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Mfr Amphenol
Series Millipacs®
Package Tray
Connector Type Header, Male Pins
Connector Style A 22
Number of Positions 154 (110 + 44 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 2
Mounting Type Through Hole
Termination Press-Fit
Connector Usage -
Contact Finish Gold
Contact Finish Thickness Flash
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Board Guide
Base Product Number HM2P07
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 48 pcs
Win Source Part Number 1382240-HM2P07PDU1A1N9LF
Ultra Librarian 3D Model Ultra Librarian HM2P07PDU1A1N9LF CAD Model

Description

The Amphenol HM2P07PDU1A1N9LF is a hard metric backplane connector from the Millipacs™ series.

  • Positions: 154 (110 Positions, 44 Ground)
  • Pitch: 0.079 inches (2.00mm)
  • Type: Header, Male Pins
  • Mounting Type: Through Hole
  • Voltage Rating: 750Vrms
  • Plating: Gold
  • Contact Finish Thickness: Flash
  • Operating Temperature: -55°C to 125°C
