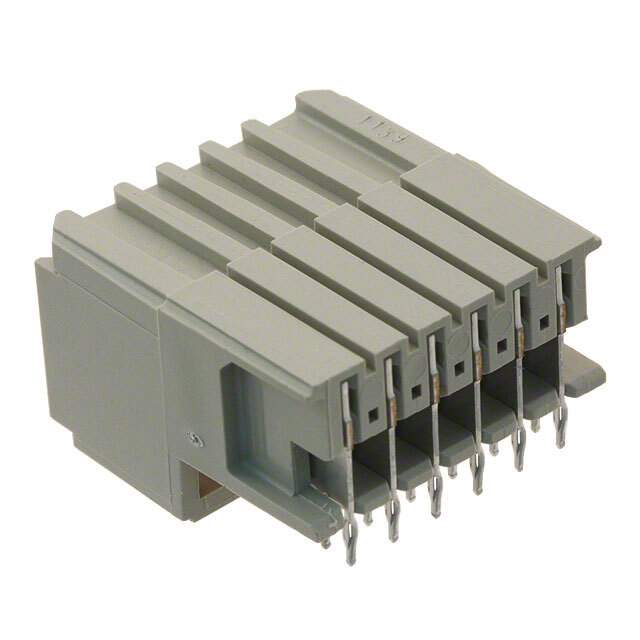

5646956-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series UPM (Universal Power Modules)
Package Tube
Connector Usage Backplane
Connector Type Header, Male Blades
Connector Style Blade Power
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 6 Power
Features Board Guide
Contact Finish Gold or Gold-Palladium
Color Gray
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 250V
Base Product Number 5646956
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 5646956-2-ND,56469562,2266-5646956-2,A101864,-5646956-2-SI
Standard Package 540
Win Source Part Number 1199224-5646956-2
Ultra Librarian 3D Model Ultra Librarian 5646956-2 CAD Model

Description

The electronic component with Id 1038407 is a slide switch from COMAX series of TE Connectivity AMP Connectors manufacturer.

  • This SP3T switch has an: actuator length of 4.00mm and a switch travel of 2.00mm.
  • It has a: current rating of 300mA (DC) and an electrical life of 10,000 cycles.
  • It is available in: bulk package and is mounted through a hole with right angle.
  • The operating temperature range of this switch is: -20°C ~ 70°C.
