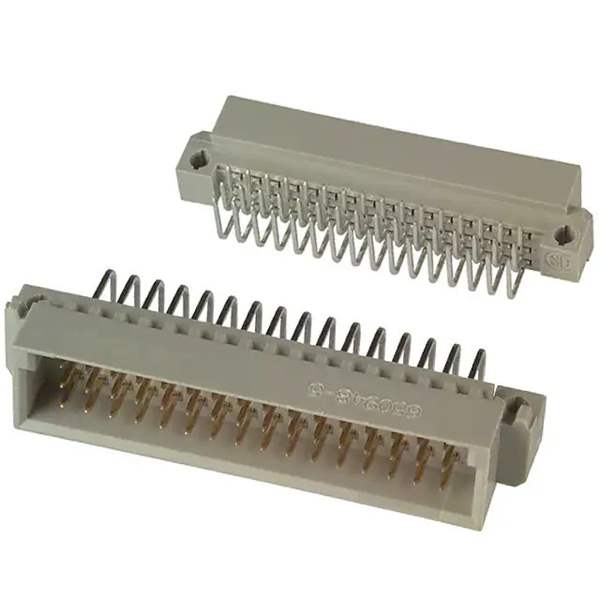

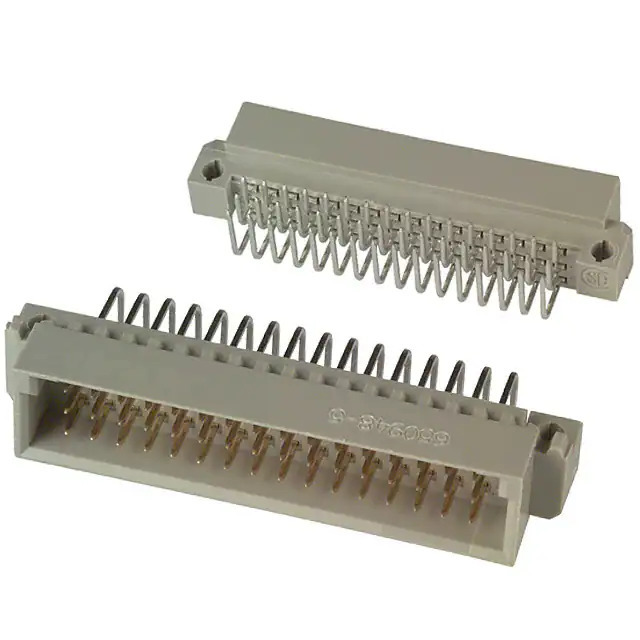

5650478-5 TE Connectivity
Same model may have multiple batches, images only for reference.

5650478-5

Part No 5650478-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN PLUG 48POS PCB RA GOLD / 48 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Product Status Active
Connector Type Plug, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness -
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5650478
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364535-5650478-5
Ultra Librarian 3D Model Ultra Librarian 5650478-5 CAD Model

Description

The TE Connectivity AMP Connectors Eurocard series offers DIN 41612 backplane connectors.

  • Temperature Range: -55°C to 125°C
  • Mounting Type: Through Hole, Right Angle
  • Current Rating: amps
  • Contact Finish: Gold
  • Style: C/2 (1/2 C)
  • Connector Type: Plug
  • Pins: Male
  • Positions: 48
  • Rows: 3
  • Termination: Solder
  • Material Flammability Rating: UL94 V-0
  • Housing Material: Polymer Thermoplastic, Glass Filled
  • Product Status: Active
  • REACH: Unaffected
