Same model may have multiple batches, images only for reference.

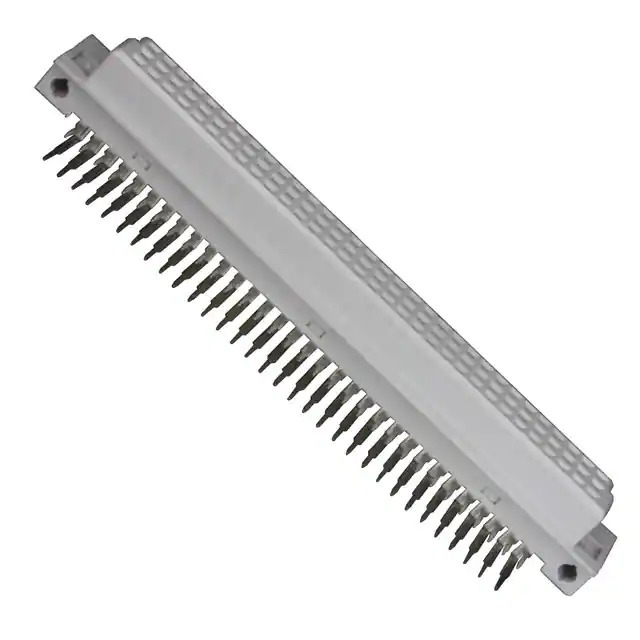

86094648813755V1LF Amphenol
Same model may have multiple batches, images only for reference.

86094648813755V1LF

Part No 86094648813755V1LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN RCPT 96POS PCB RA GOLD / 96 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Amphenol ICC (FCI)
Series 8609
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded 64
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness -
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 8609464881
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364487-86094648813755V1LF
Ultra Librarian 3D Model Ultra Librarian 86094648813755V1LF CAD Model

Description

The Amphenol ICC (FCI) 8609 series is a DIN 41612 backplane connector.

  • Connector Type: Receptacle
  • Gender: Female
  • Number of Positions: 96
  • Number of Rows: 3
  • Mounting Type: Through-Hole, Right Angle
  • Pitch: 0.100" (2.54mm)
  • Current Rating: 1.5A
  • Contact Finish: Gold
  • Insulation Material: Polyester Thermoplastic
  • Flammability Rating: UL94 V-0
  • REACH: Compliant
  • ECCN: EAR99
