Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series D
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Features Grounding Indents
Voltage Rating 300V
Color Natural
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DE09P064
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 609-1524
Standard Package 100
Win Source Part Number 1018750-DE09P064TXLF
Ultra Librarian 3D Model Ultra Librarian DE09P064TXLF CAD Model

Description

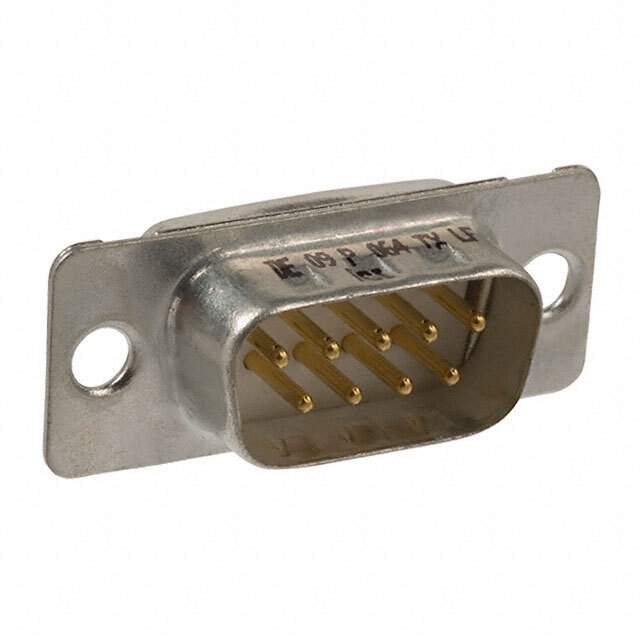

The Amphenol ICC (FCI) D-sub connector is a male pin plug with a solder cup termination. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Connector Type: D-sub connector
  • Gender: Male
  • Termination: Solder Cup
  • Number of Positions: 9
  • Color: Natural
  • Grounding Indents: Yes
  • Voltage Rating: 300V
  • Current Rating: 5A per contact
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Shell Material: Steel, Tin Plated
  • Flange: Yes, with Housing/Shell (Unthreaded)
  • Mounting: Free Hanging (In-Line)
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
