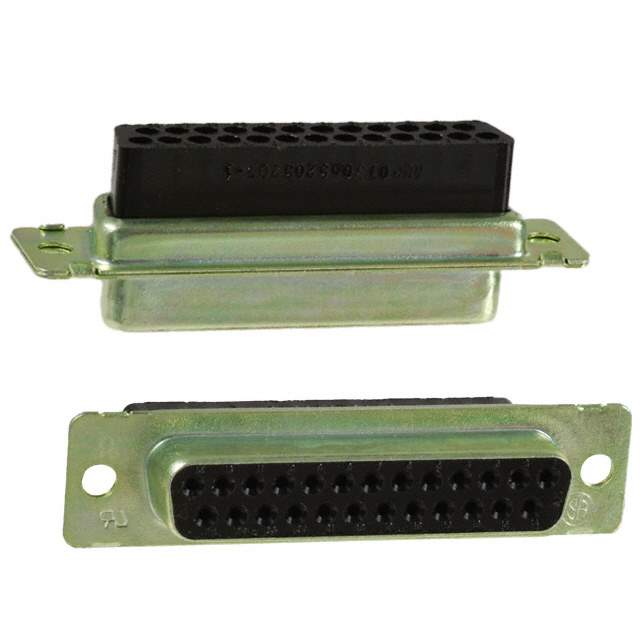

5205207-1 Real Image
Same model may have multiple batches, images only for reference.

5205207-1

Part No 5205207-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB HOUSING RCPT 25POS  /  Receptacle for Female Contacts Housing D-Sub Connector 25 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Yellow Chromate Plated Zinc
Shell Finish Thickness 200µin (5.08µm)
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 5205207
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names -4-16211-7349-SI,-4-16211-7349-SI-ND,A34108,-5205207-1-SI,52052071
Standard Package 400
Win Source Part Number 1230731-5205207-1
Ultra Librarian 3D Model Ultra Librarian 5205207-1 CAD Model

Description

AMPLIMITE HDP-20 series from TE Connectivity AMP Connectors has a 25-position black housing.

  • Connector Type: Receptacle
  • Contact Gender: For Female Contacts
  • Contact Type: Signal
  • Number of Rows: 2
  • Package Type: Bulk
  • Contacts Included: No
  • Connector Style: D-Sub
  • Ingress Protection: Not Specified
  • Shell Material: Steel
  • Shell Plating: Yellow Chromate Plated Zinc
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
  • Shell Size: 3 (DB, B)
  • Mounting Type: Free Hanging (In-Line)
  • Shell Finish Thickness: 200µin (5.08µm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
