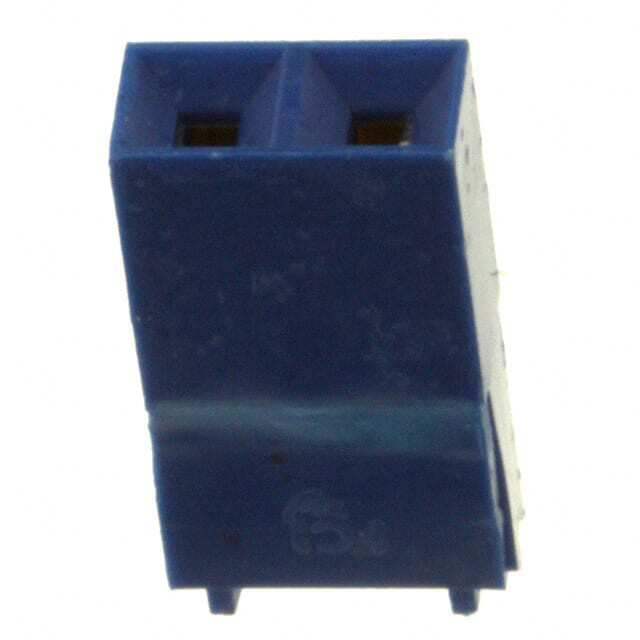

65474-001LF Real Image
Same model may have multiple batches, images only for reference.

65474-001LF

Part No 65474-001LF
Manufacturer Amphenol
Catalog Shunts, Jumpers
Description CONN MINI-JUMP SHUNT 2POS ..100"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Shunts, Jumpers
Mfr Amphenol
Series Mini-Jump™
Package Bag
Product Status Active
Type Closed Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.385" (9.78mm)
Contact Finish Gold or Gold, GXT™
Contact Finish Thickness 40.0µin (1.02µm)
Color Blue
Material Flammability Rating UL94 V-0
Housing Material Polyester
Current Rating (Amps) 3A
Base Product Number 65474
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 852280-65474-001LF
Ultra Librarian 3D Model Ultra Librarian 65474-001LF CAD Model

Description

The Amphenol 852280-65474-001LF is a shunt jumper connector from the Mini-Jump™ series.

  • Design: Closed Top
  • Pitch: 0.100" (2.54mm)
  • Color: Blue
  • Contact Finish: Gold
  • Contact Finish Thickness: 40.0µin (1.02µm)
  • Housing Material: Polyester
  • Flammability Rating: UL94 V-0
  • Positions: 2
  • Configuration: 1 x 2 Grid
  • Height: 0.385" (9.78mm)
  • Package: Bag
  • Current Rating: 3A
  • Standard Package: 500 pcs
